Metal garages made of 1.2/2.0 mm steel

Metal garages made of steel

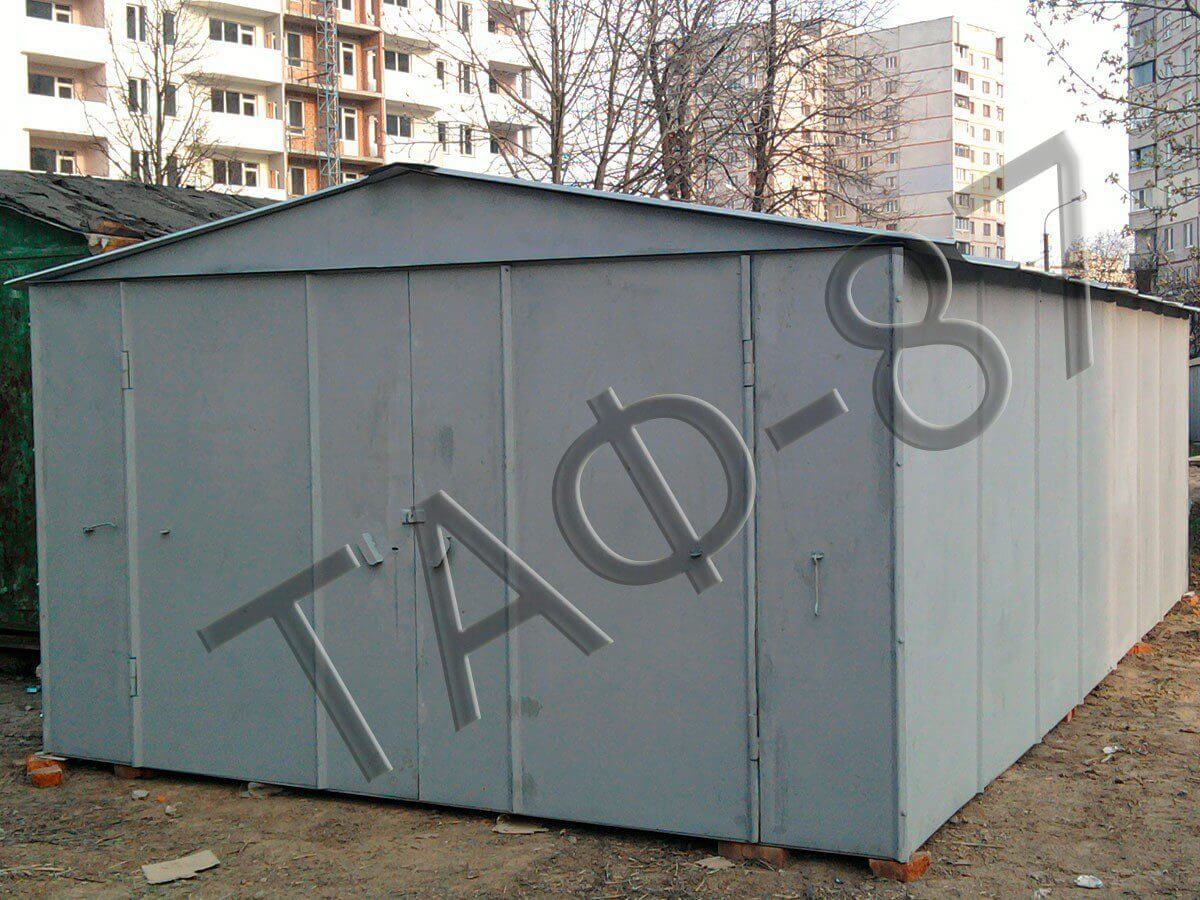

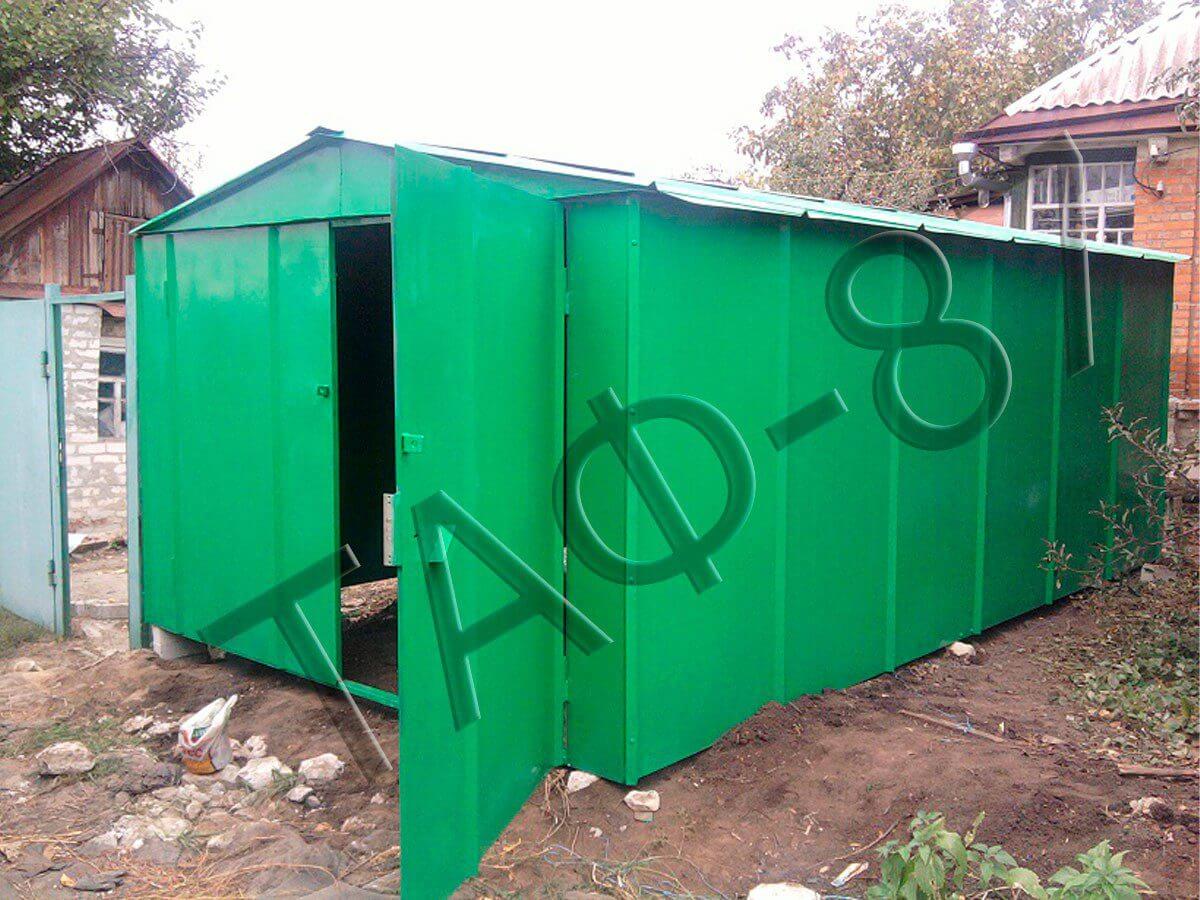

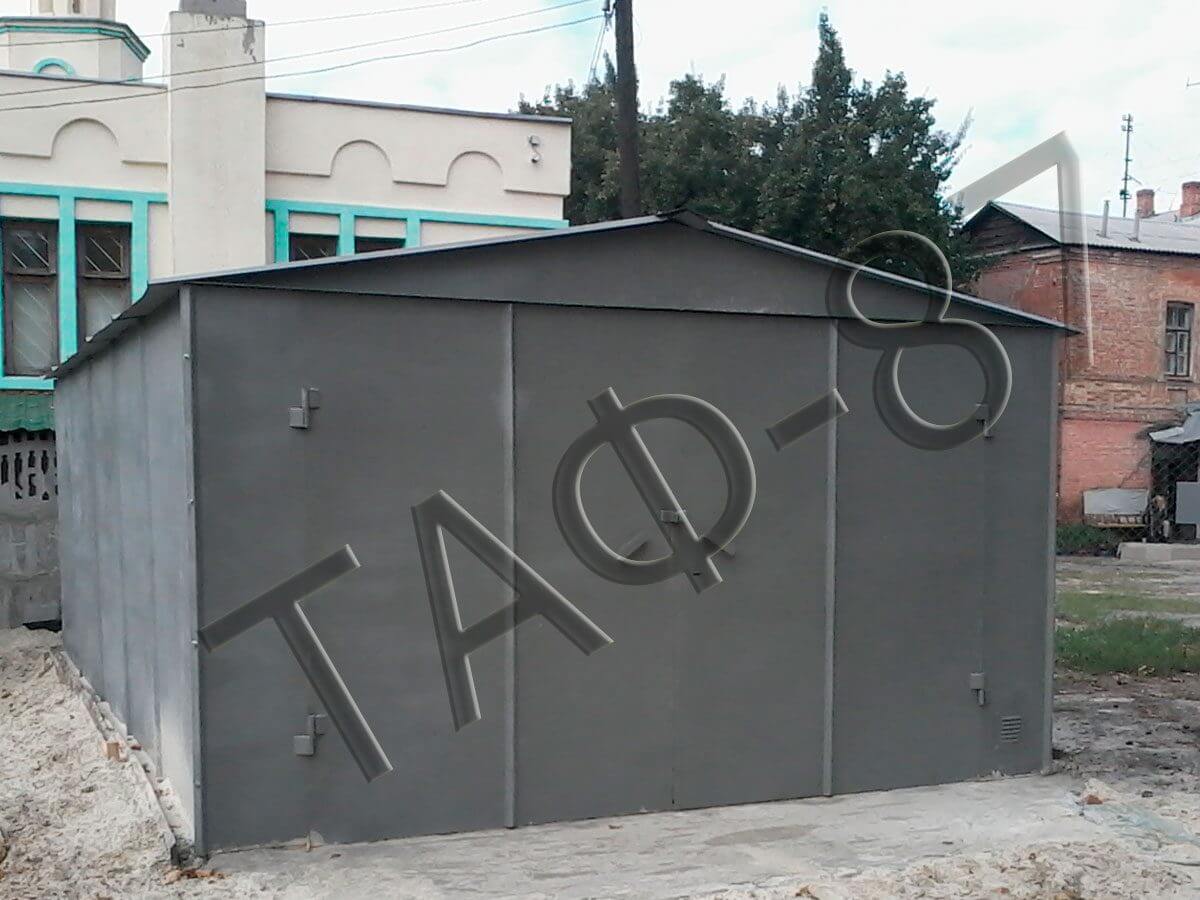

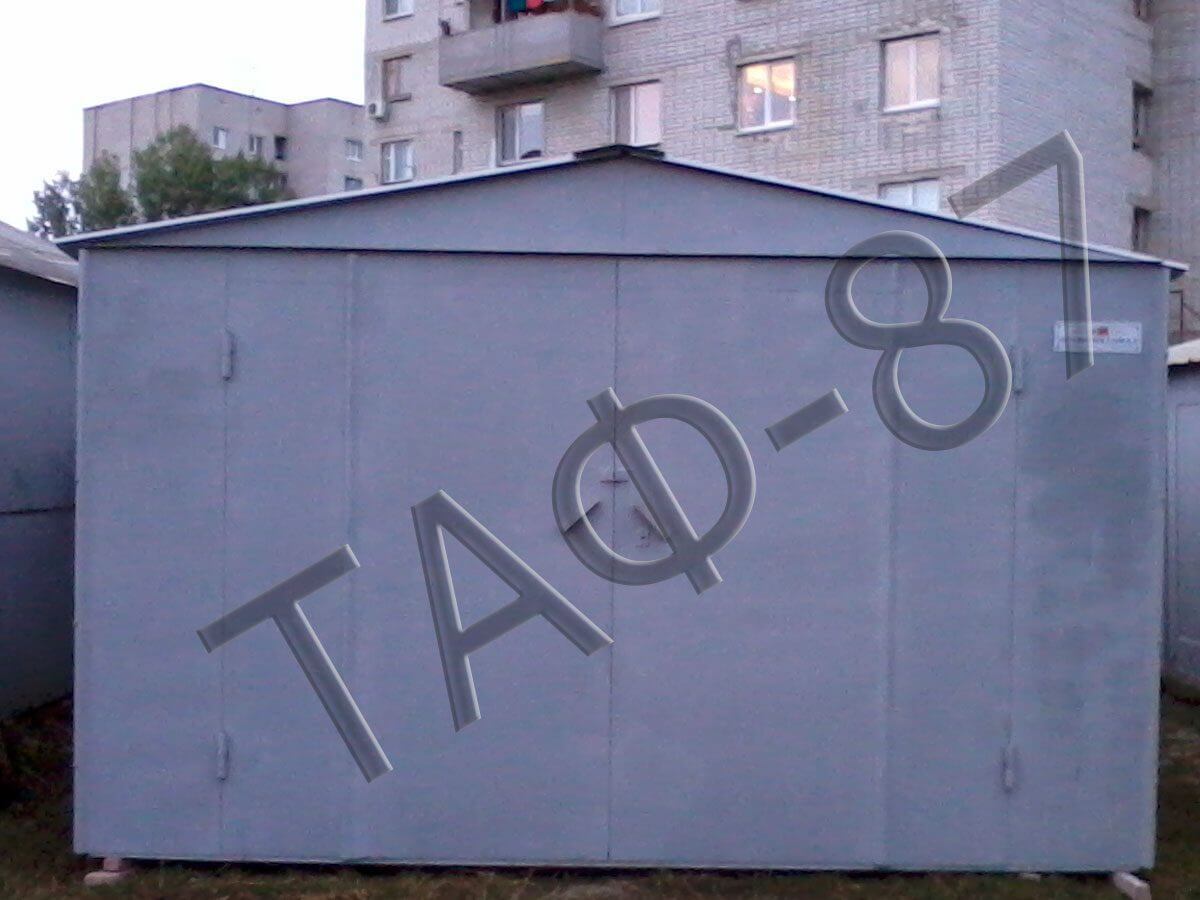

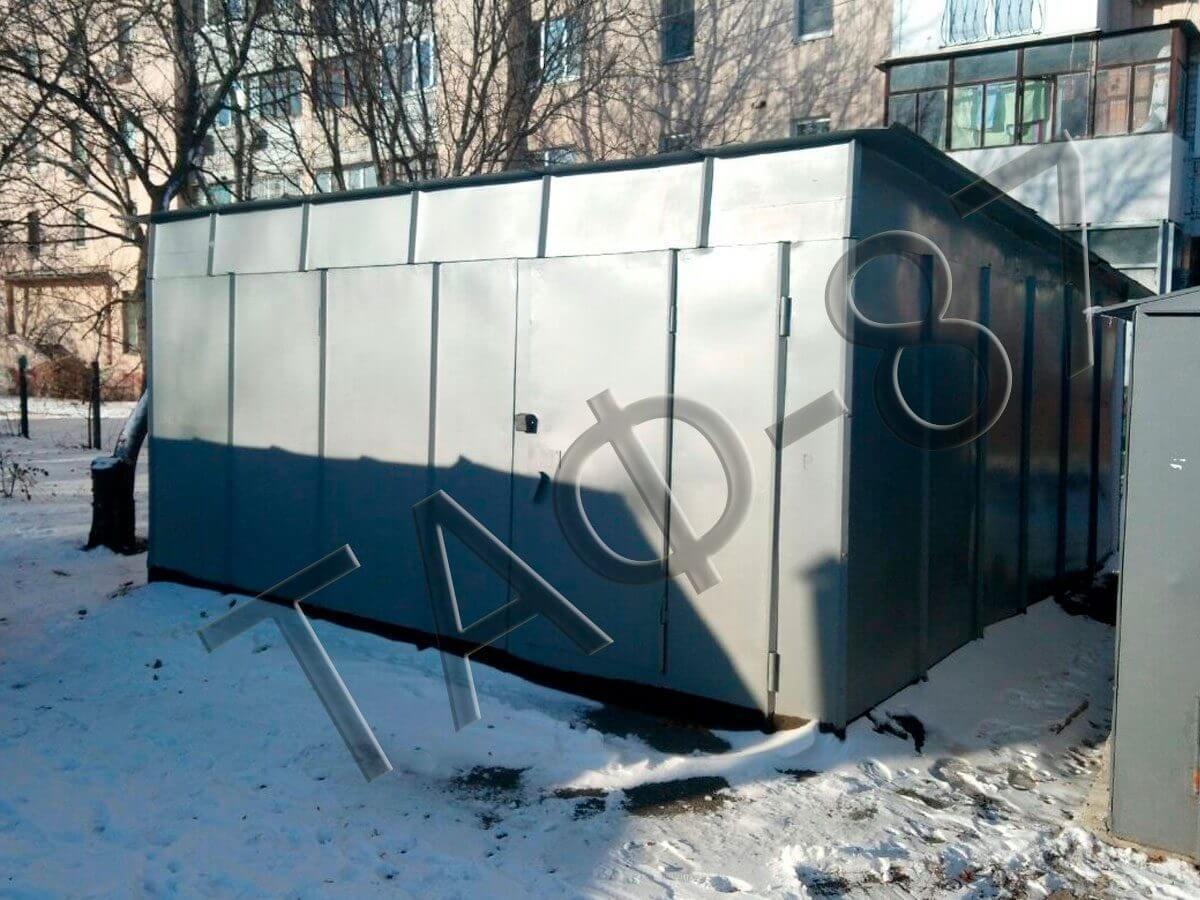

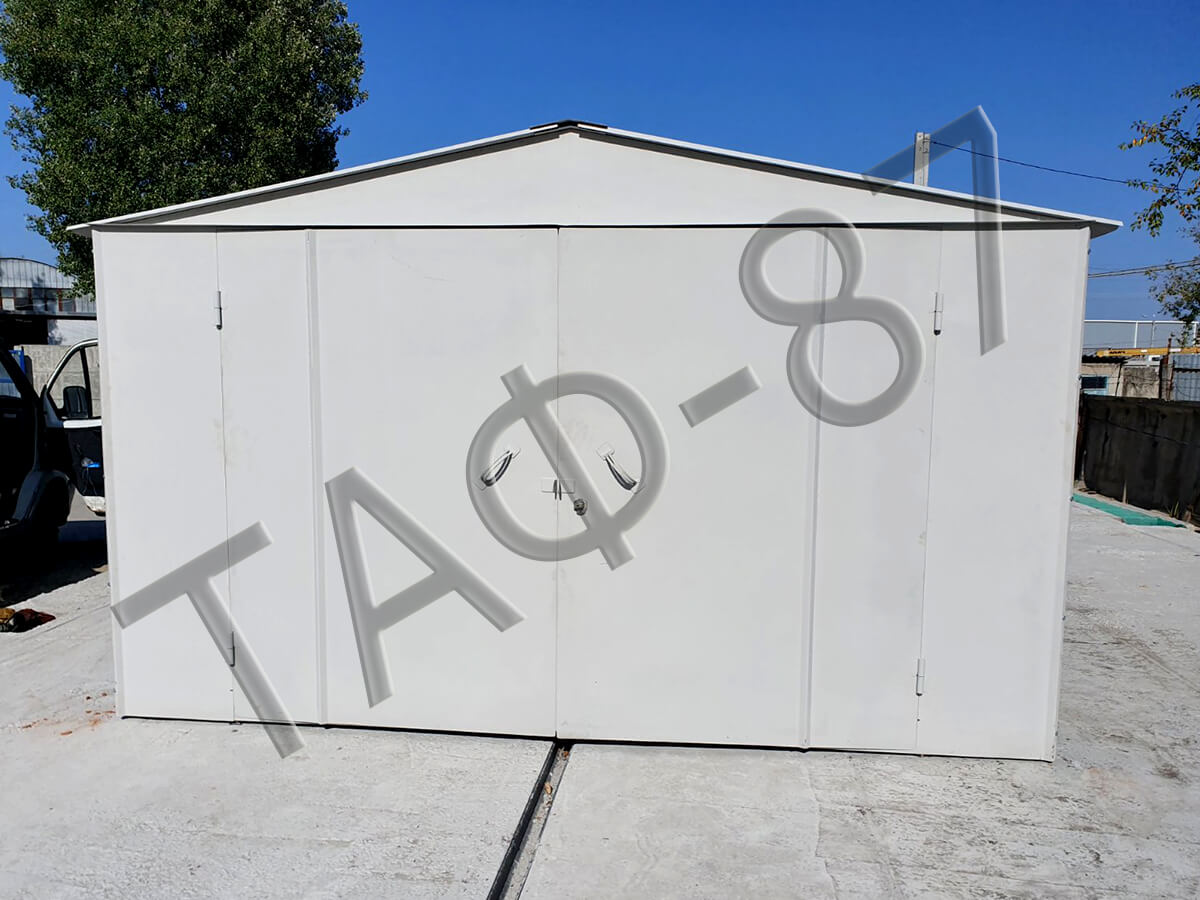

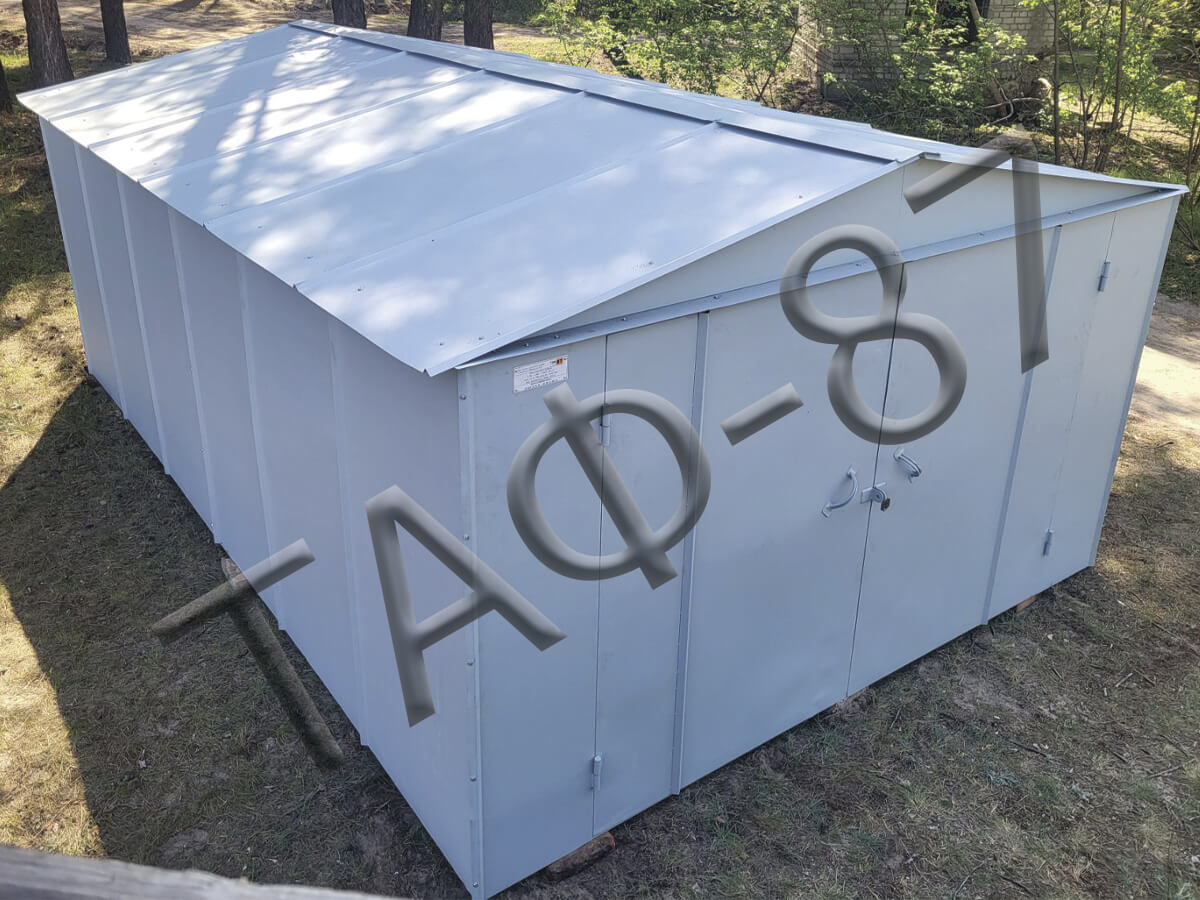

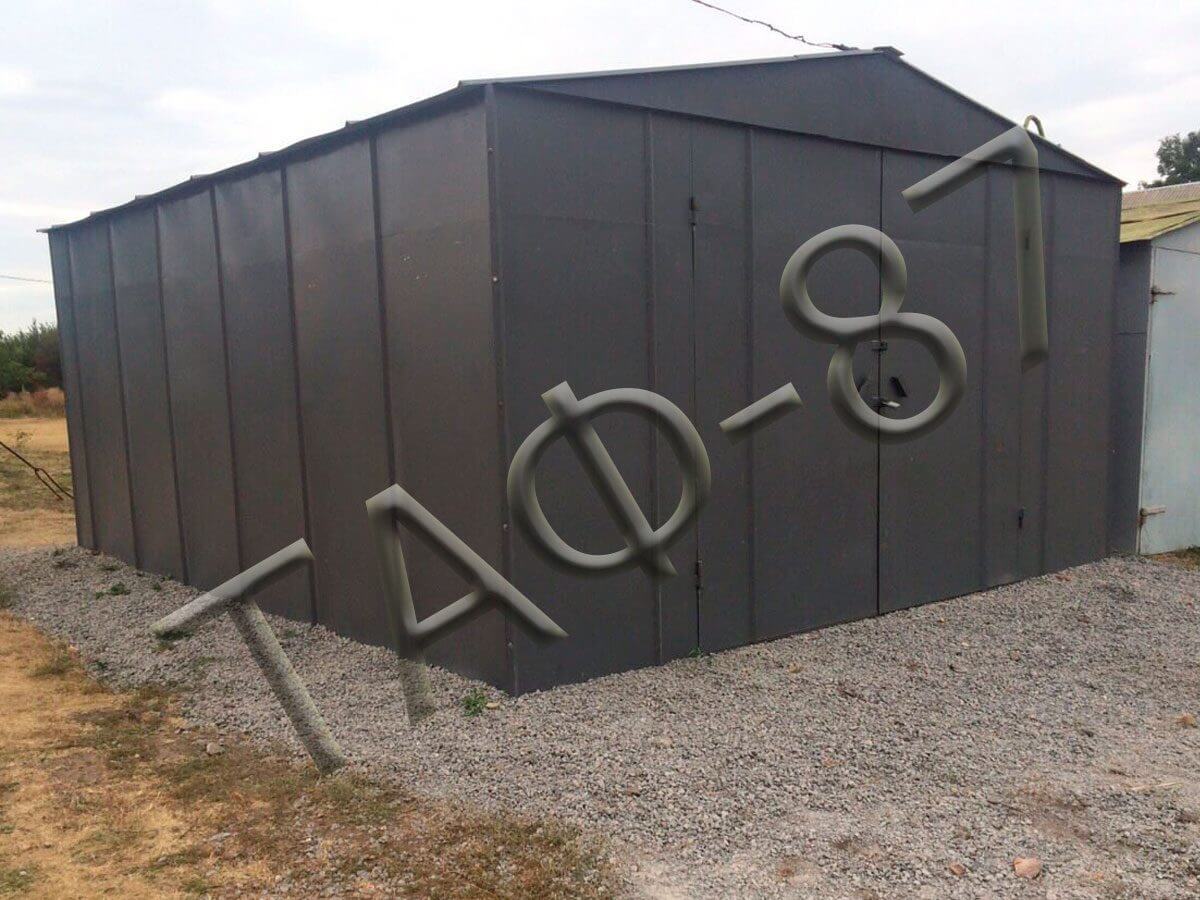

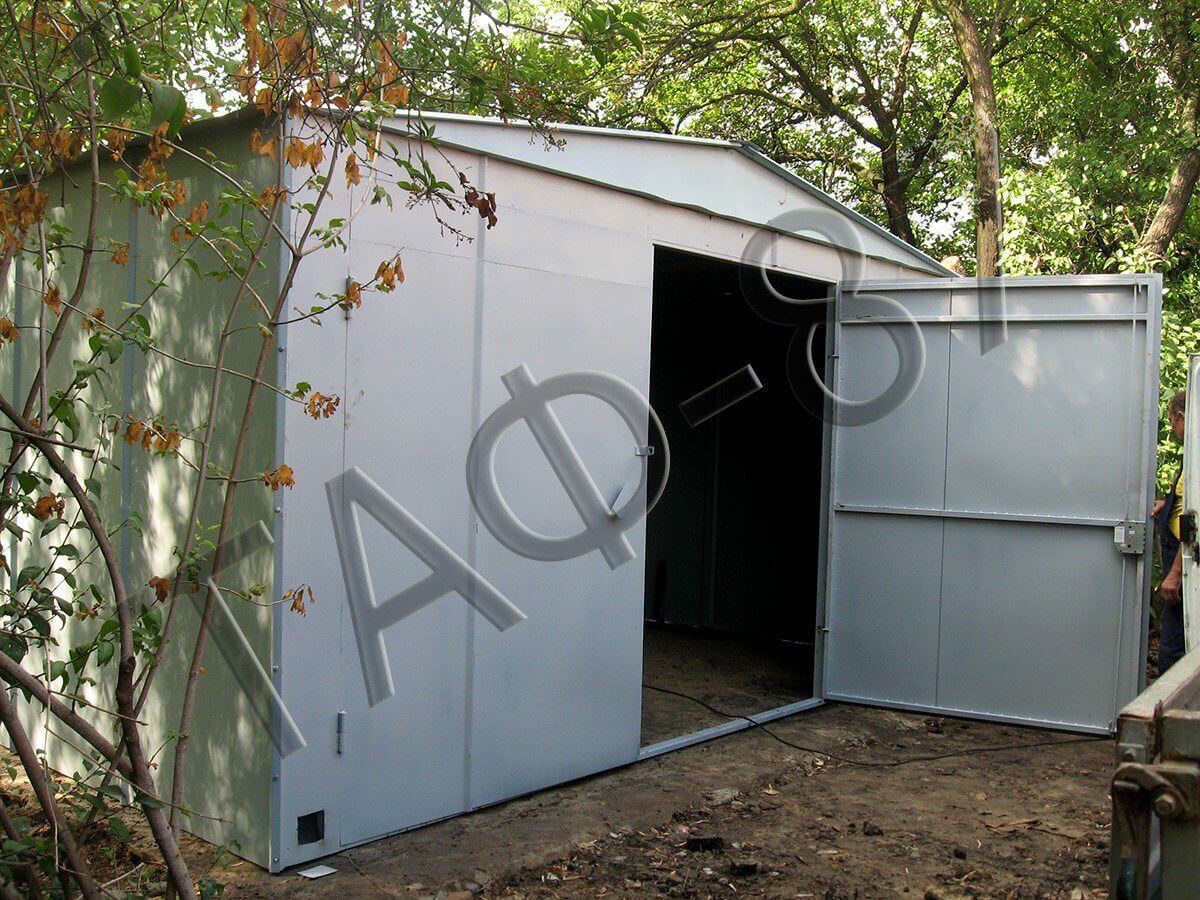

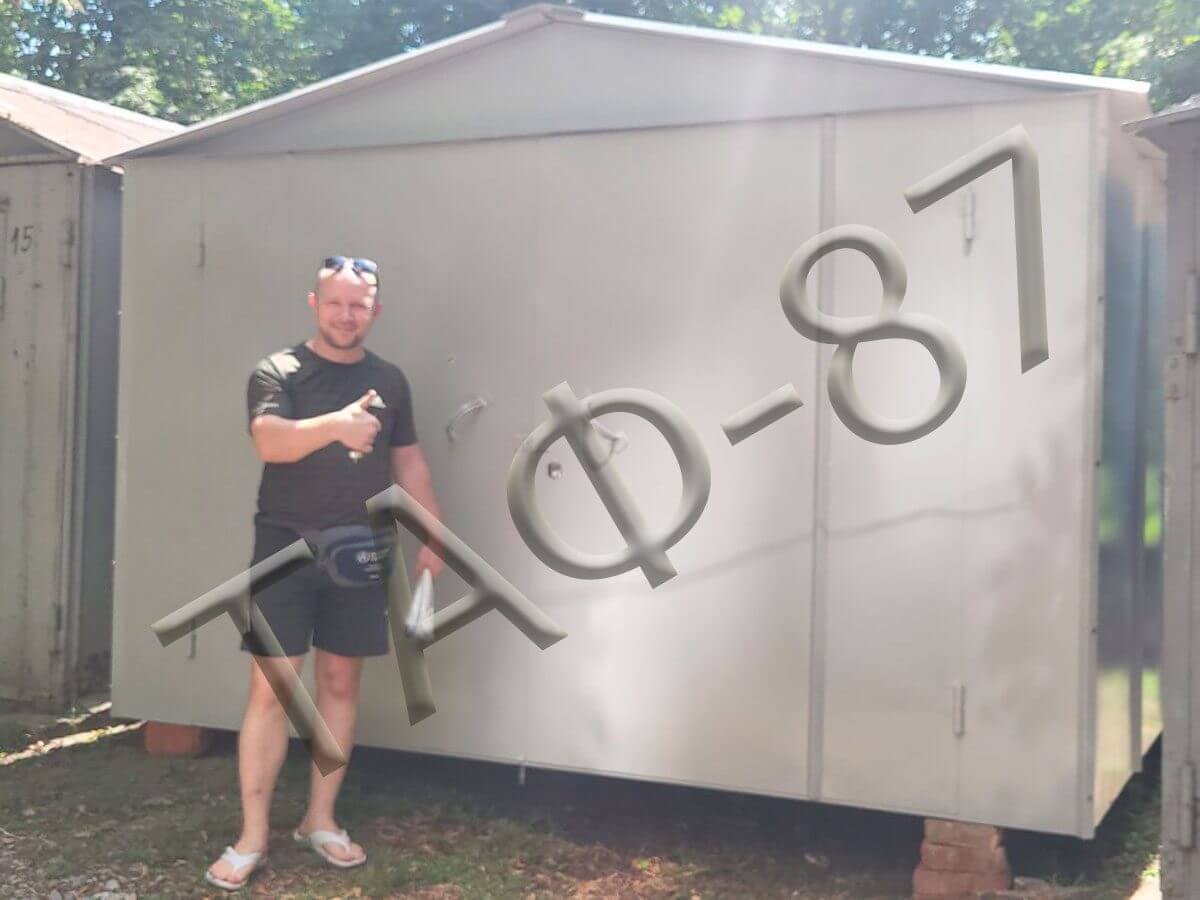

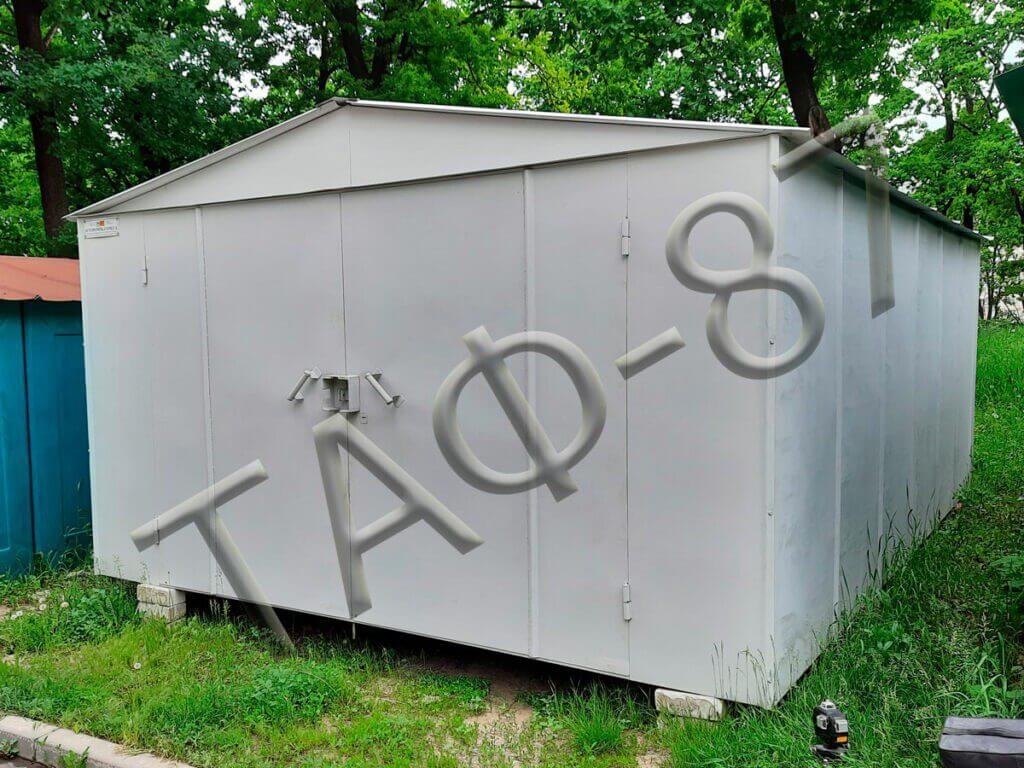

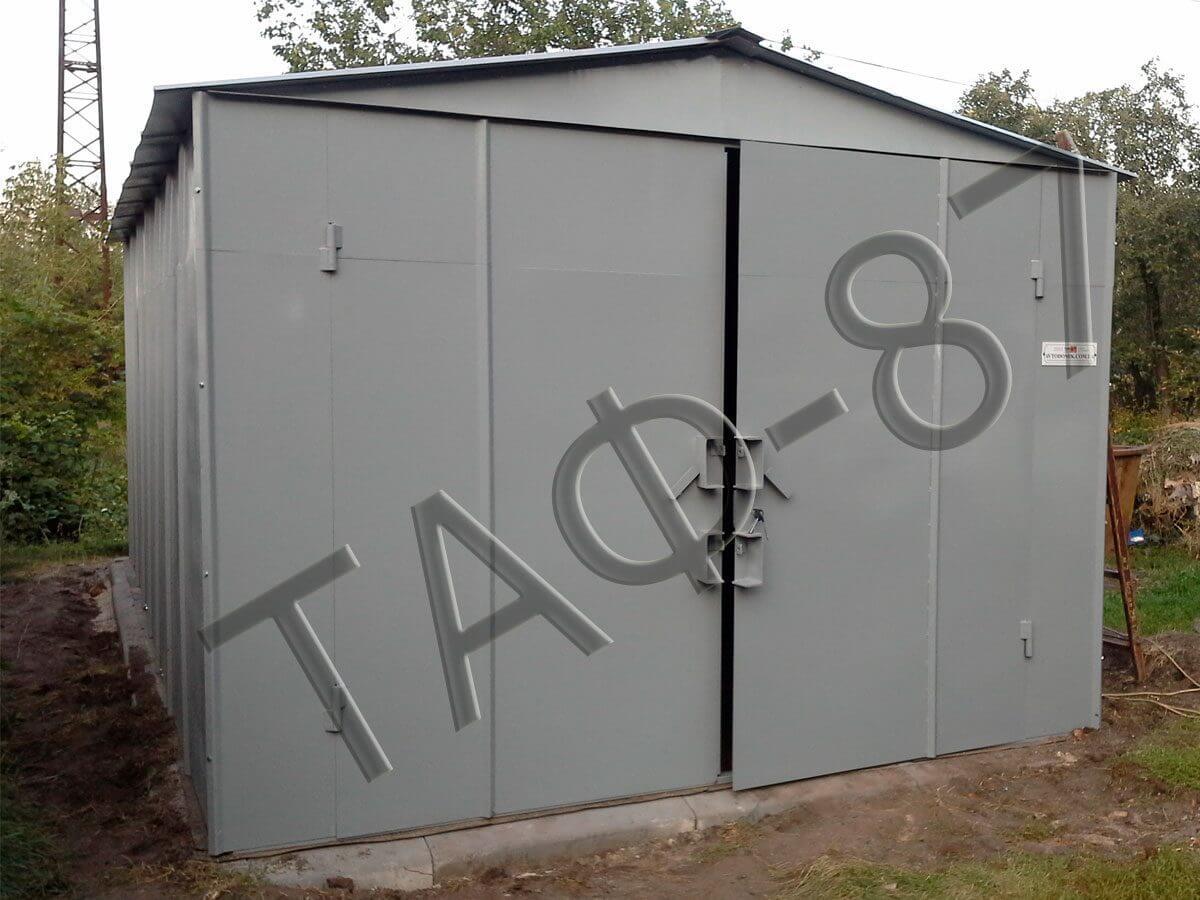

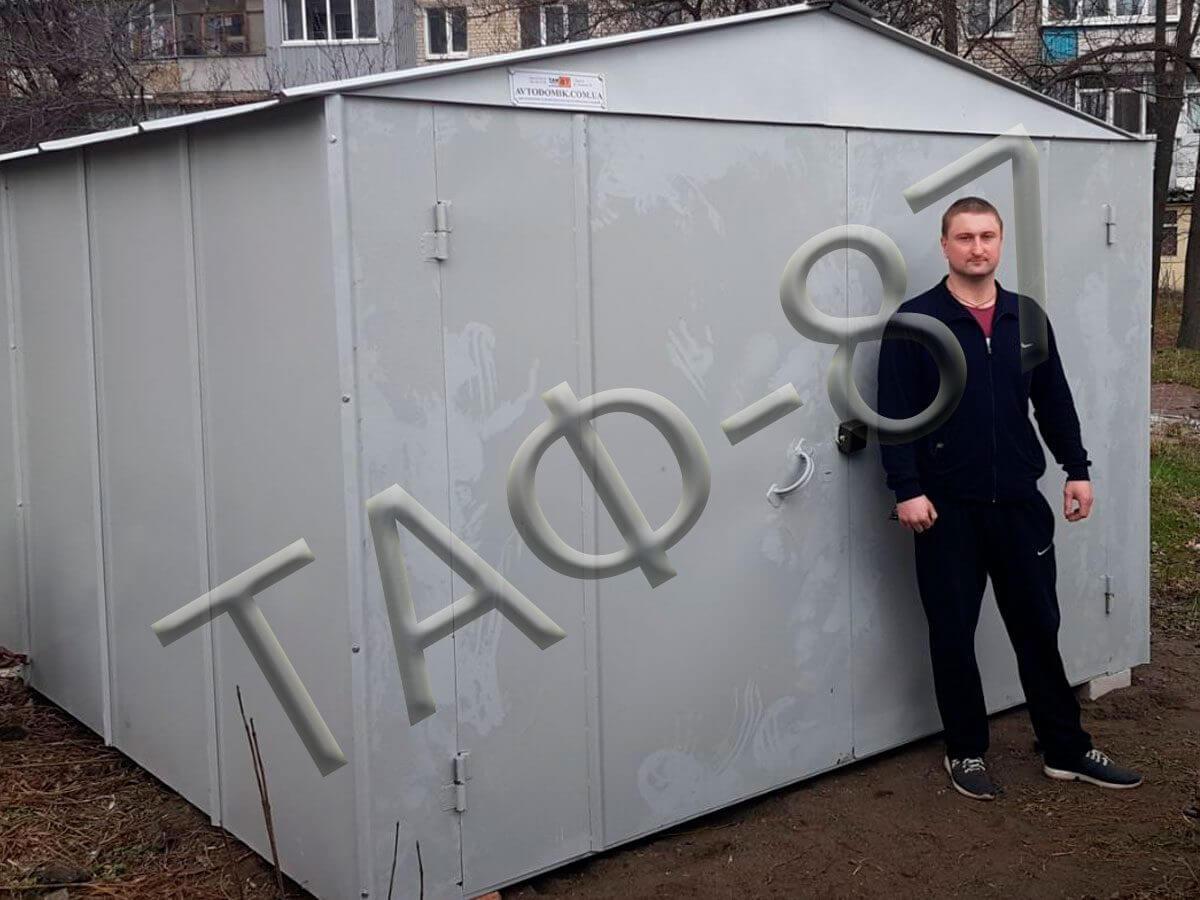

Metal garages made of TAF-87 steel are a popular choice for those looking for a reliable and durable place to store a car or other property.

Prices for metal garages made of steel “TAF-87”

№	Dimensions, LxWxH, m	Metal thickness, mm	Characteristics	Price, UAH

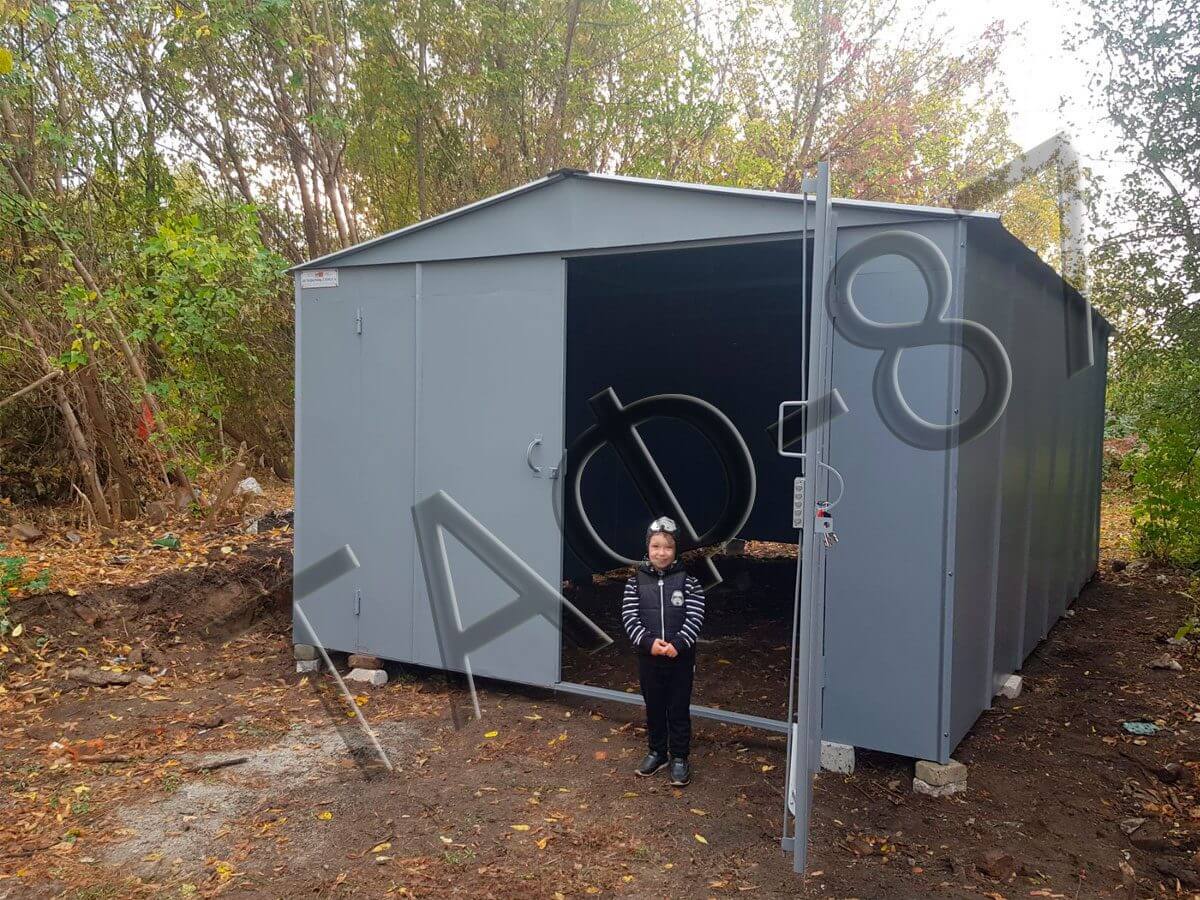

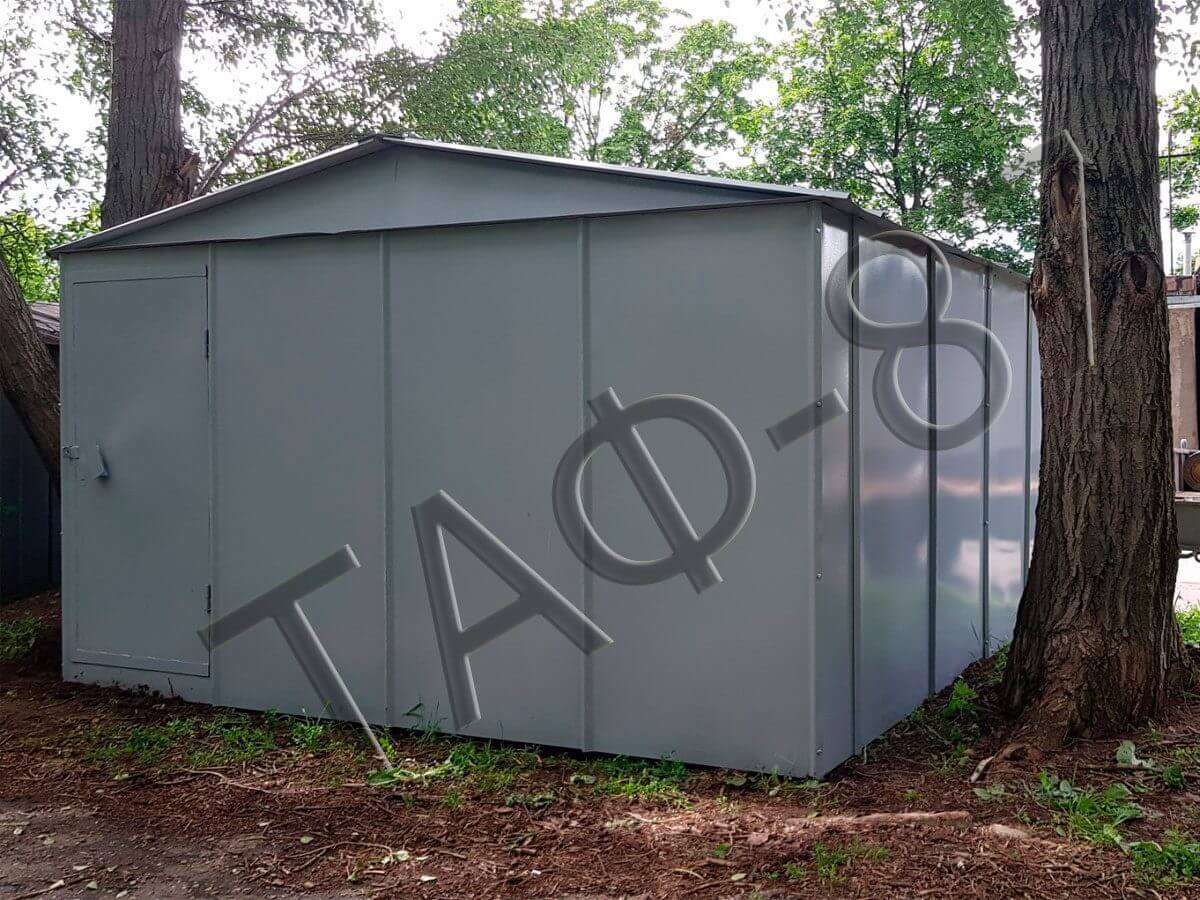

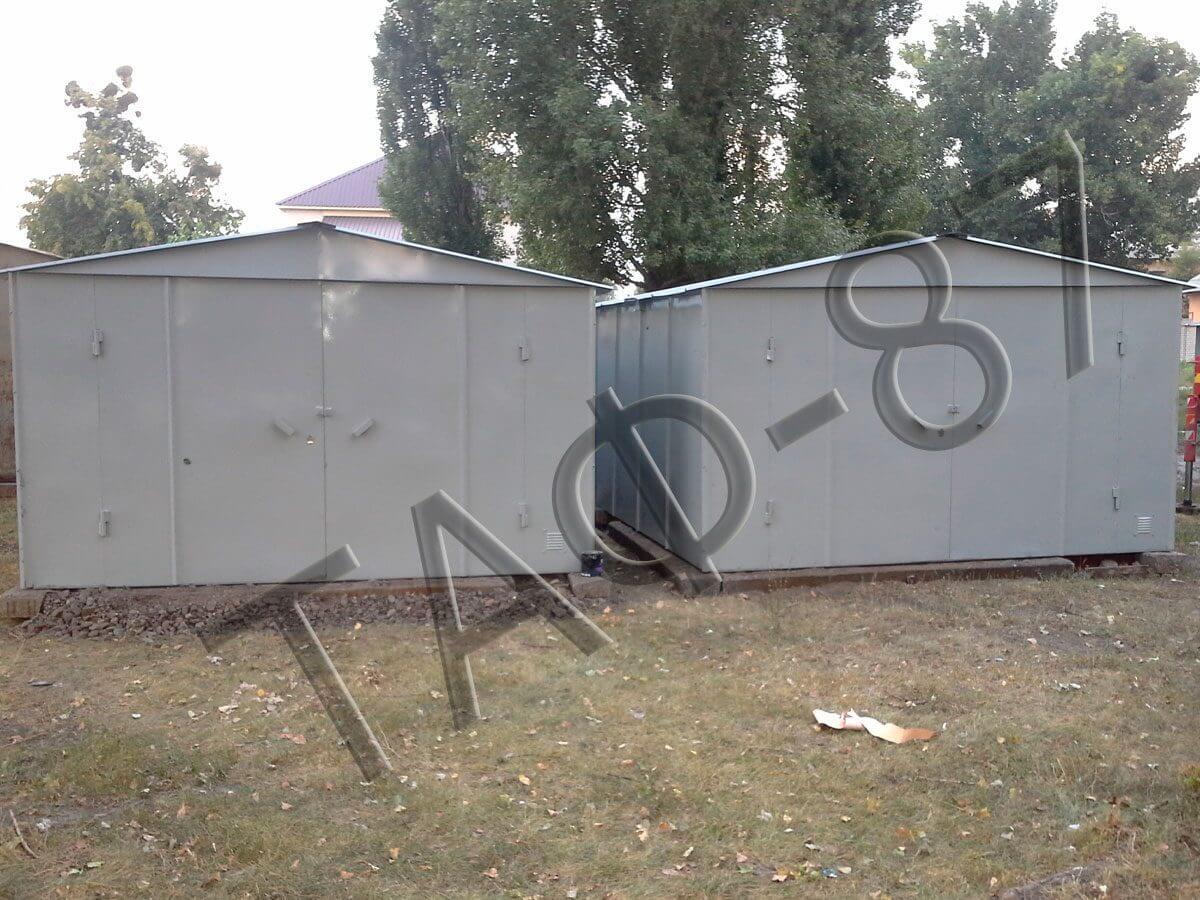

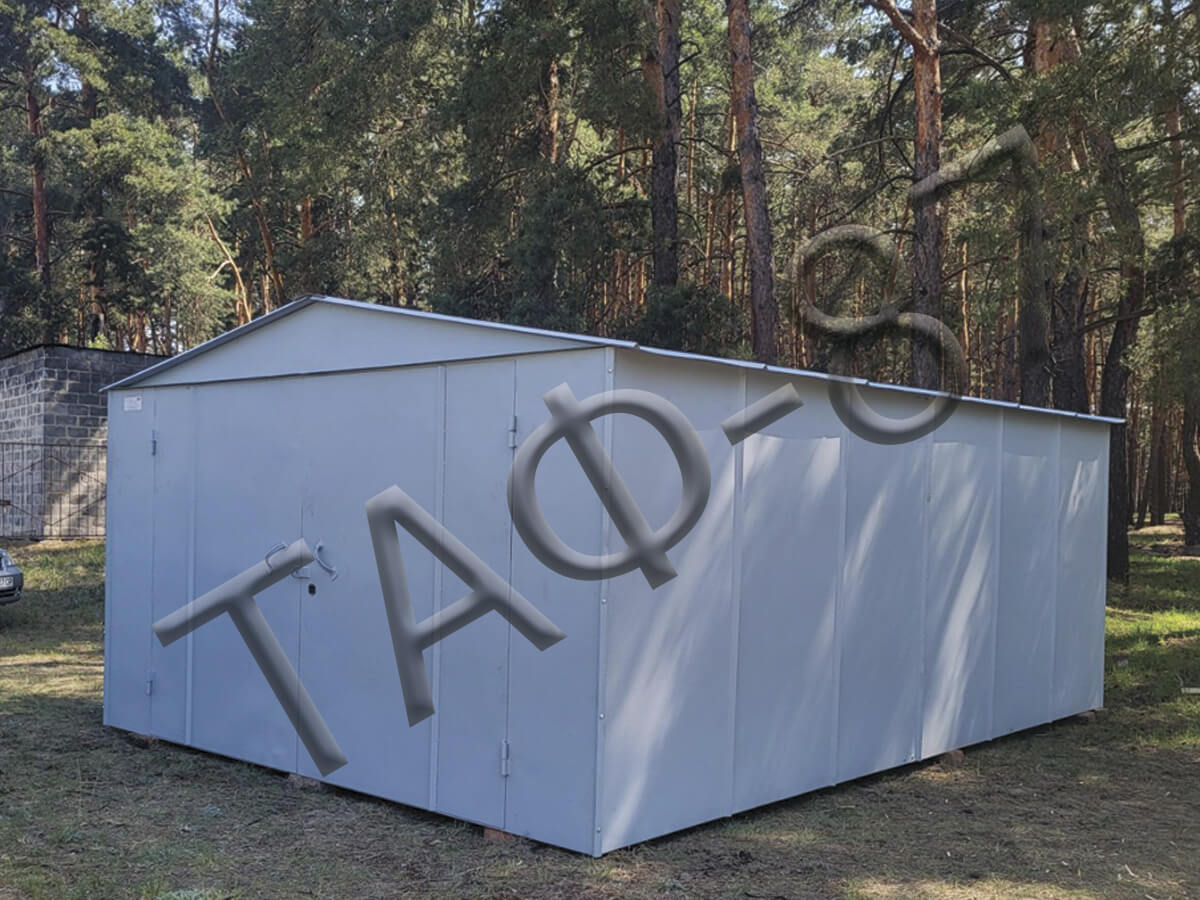

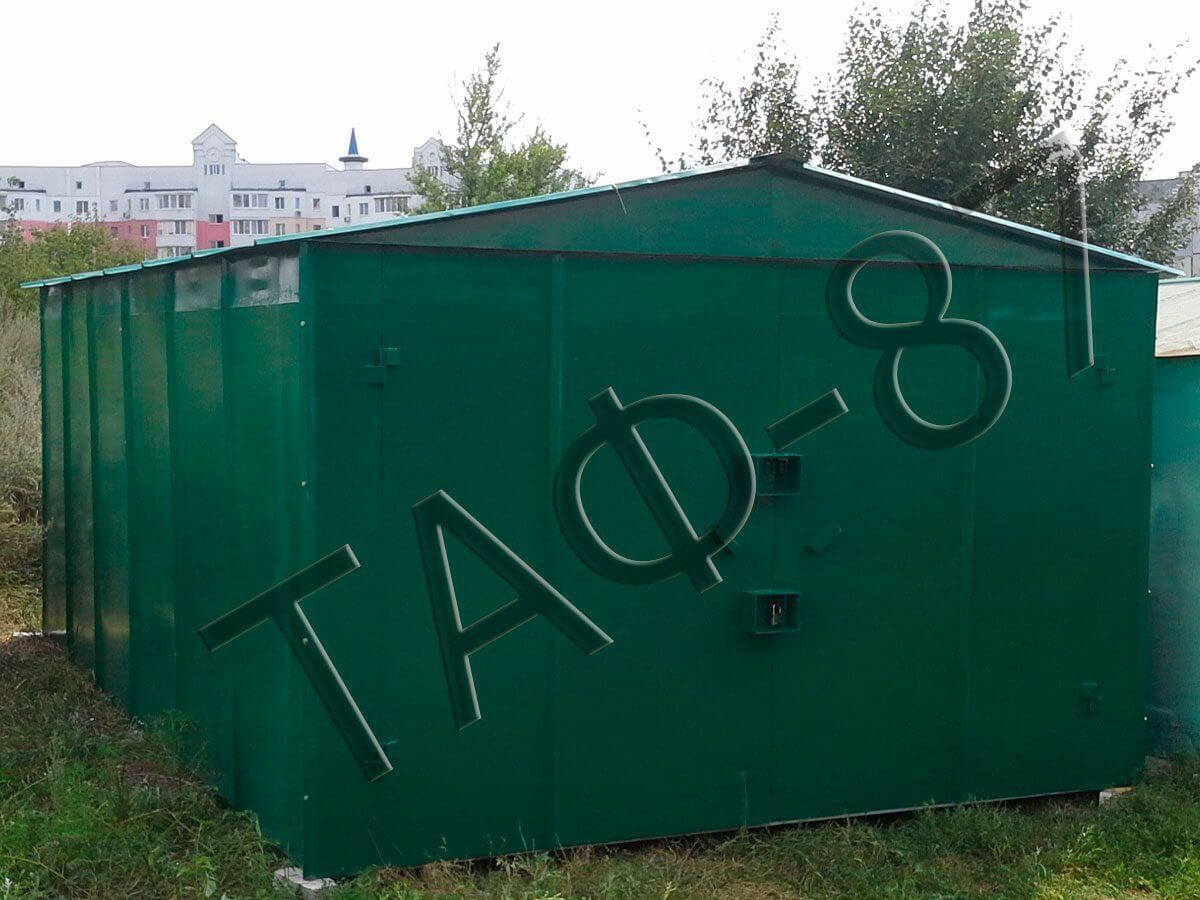

1	5,0 х 3,0 х 2,0	1,2 mm	Gable roof, soil from outside and inside, support legs, spingalets, strengthening of the roof	48 000
2	5,5 х 3,3 х 2,0	1,2 mm	Gable roof, soil from outside and inside, support legs, spingalets, strengthening of the roof	52 000
3	5,7 х 3,8 х 2,0	1,2 mm	Gable roof, soil from outside and inside, support legs, spingalets, strengthening of the roof	54 000
4	5,7 х 3,8 х 2,0	2,0 mm	Gable roof, soil from outside and inside, support legs, spingalets, strengthening of the roof	68 000
5	6,0 х 3,8 х 2,0	1,2 mm	Gable roof, soil from outside and inside, support legs, spingalets, strengthening of the roof	57 000
6	6,5 х 3,8 х 2,0	1,2 mm	Gable roof, soil from outside and inside, support legs, spingalets, strengthening of the roof	61 000
7	6,5 х 3,8 х 2,0	2,0 mm	Gable roof, soil from outside and inside, support legs, spingalets, strengthening of the roof	78 000
8	6,5 х 3,8 х 2,2	1,2 mm	Gable roof, soil from outside and inside, support legs, spingalets, strengthening of the roof	64 000
9	Length up to 12.0 m Width up to 7.0 m Height up to 3.0 m	1,2/2,0 mm	Any options upon order: gate, soil, enamel, shelves, ventilation grills, additional protection, etc.	contractual

Usually, in 90% of cases, the following are additionally ordered: an internal lock, delivery, assembly, concreting, painting from the outside.

№	Name	Characteristic	Price, UAH
1	Delivery in Kharkiv	Loading, delivery, unloading	2 000 UAH
2	Delivery across Ukraine by own transport	The price of driving along the route, in each direction from the city of Kharkiv, accommodation and travel expenses additionally if necessary	from 20 UAH/km
3	Delivery across Ukraine by accompanying transport	Depends on distance and demand for delivery direction	from 15 UAH/km

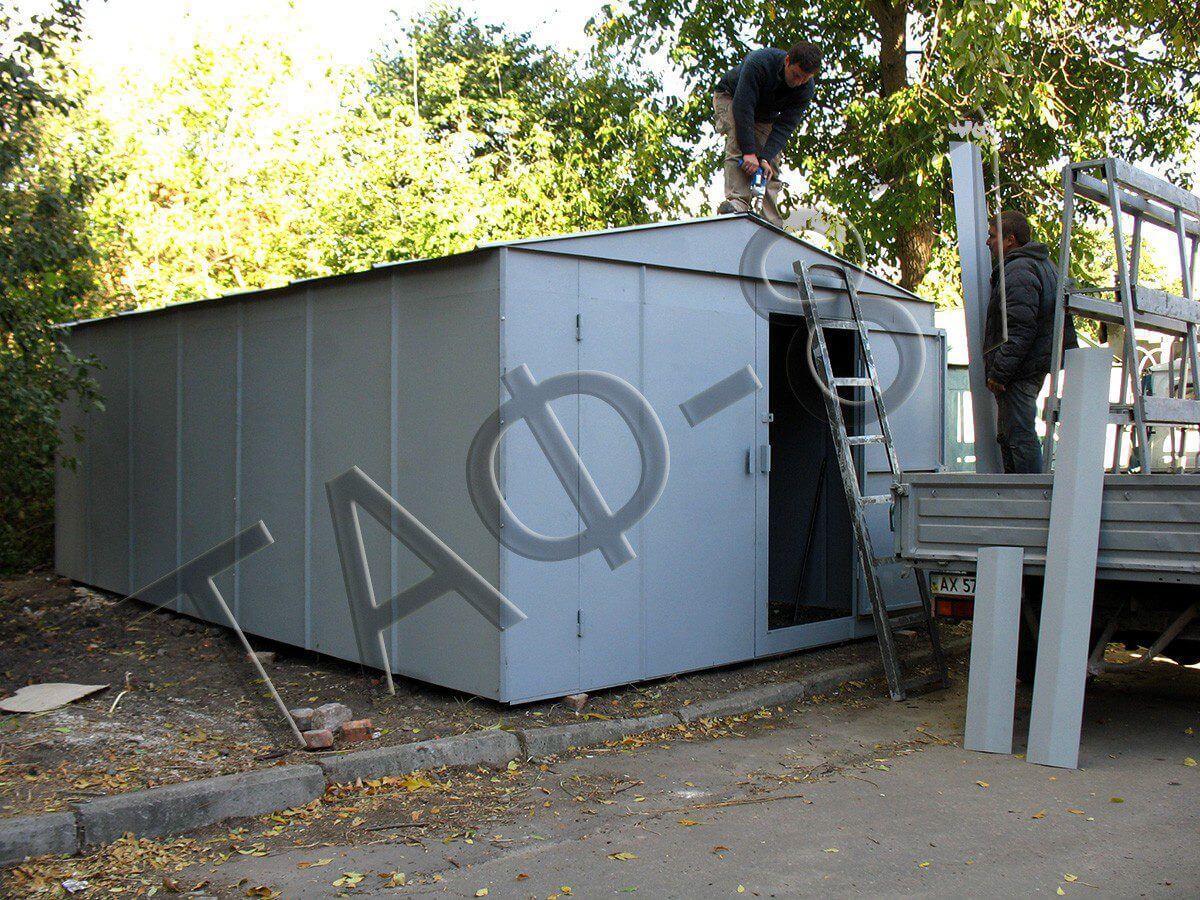

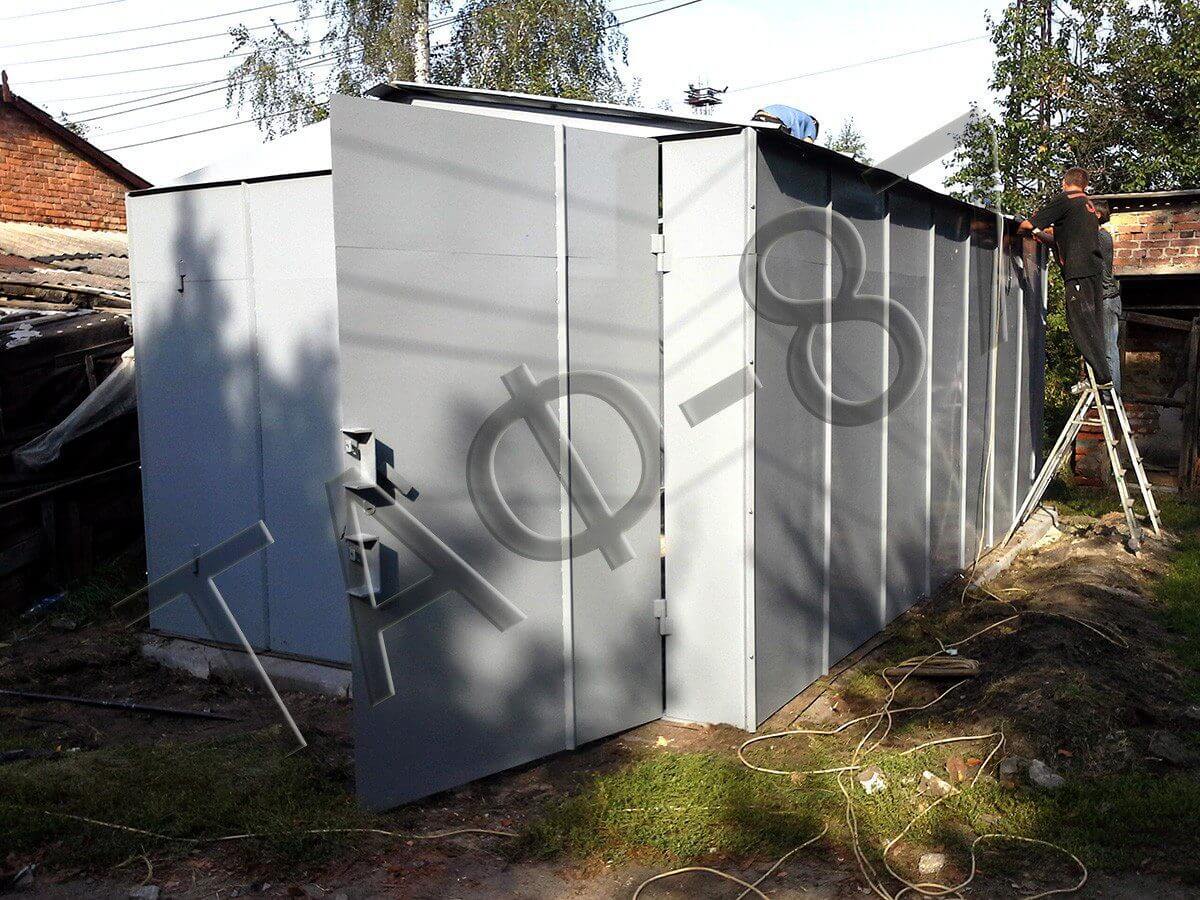

4	Assembling (installation)	Price for a standard design	4 000 UAH
5	Internal lock	Mottura, suwaldny, with traction	3 500 UAH

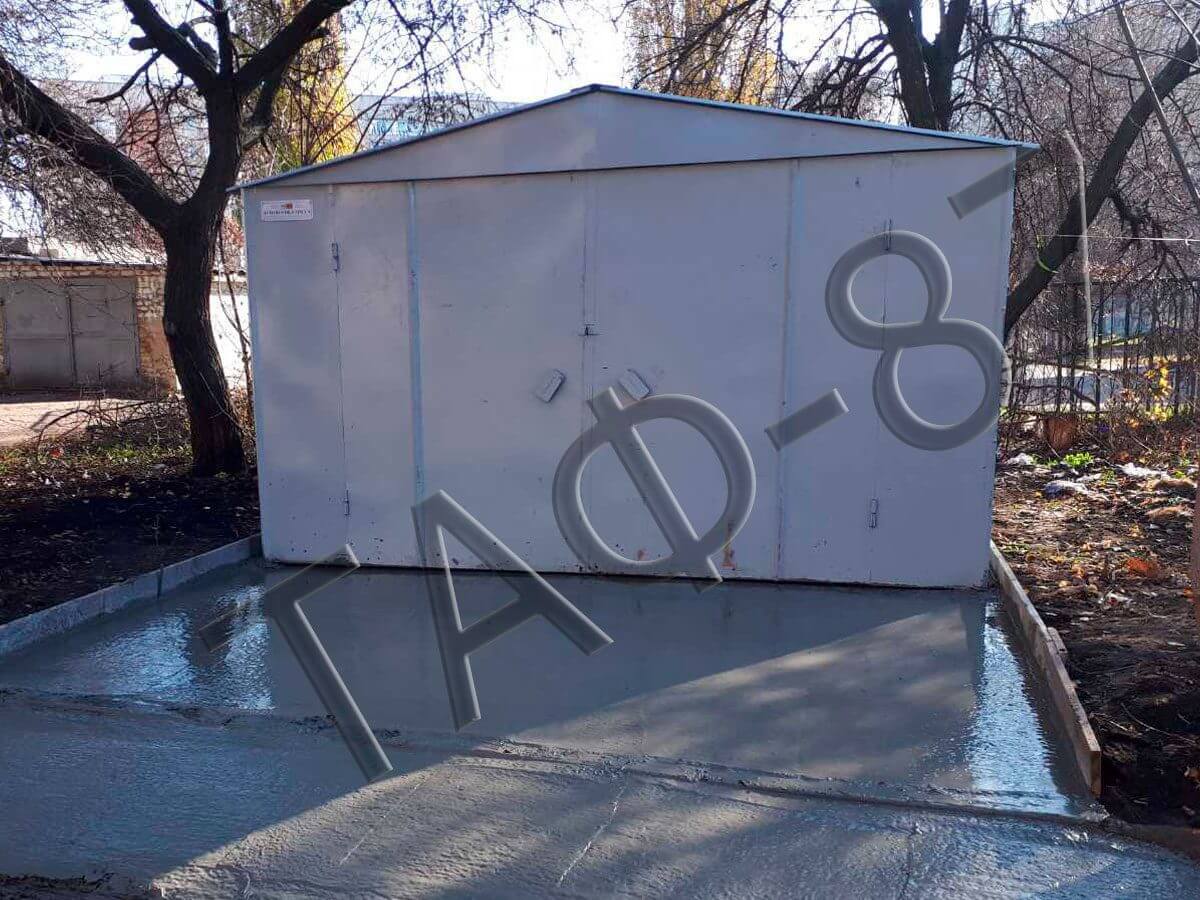

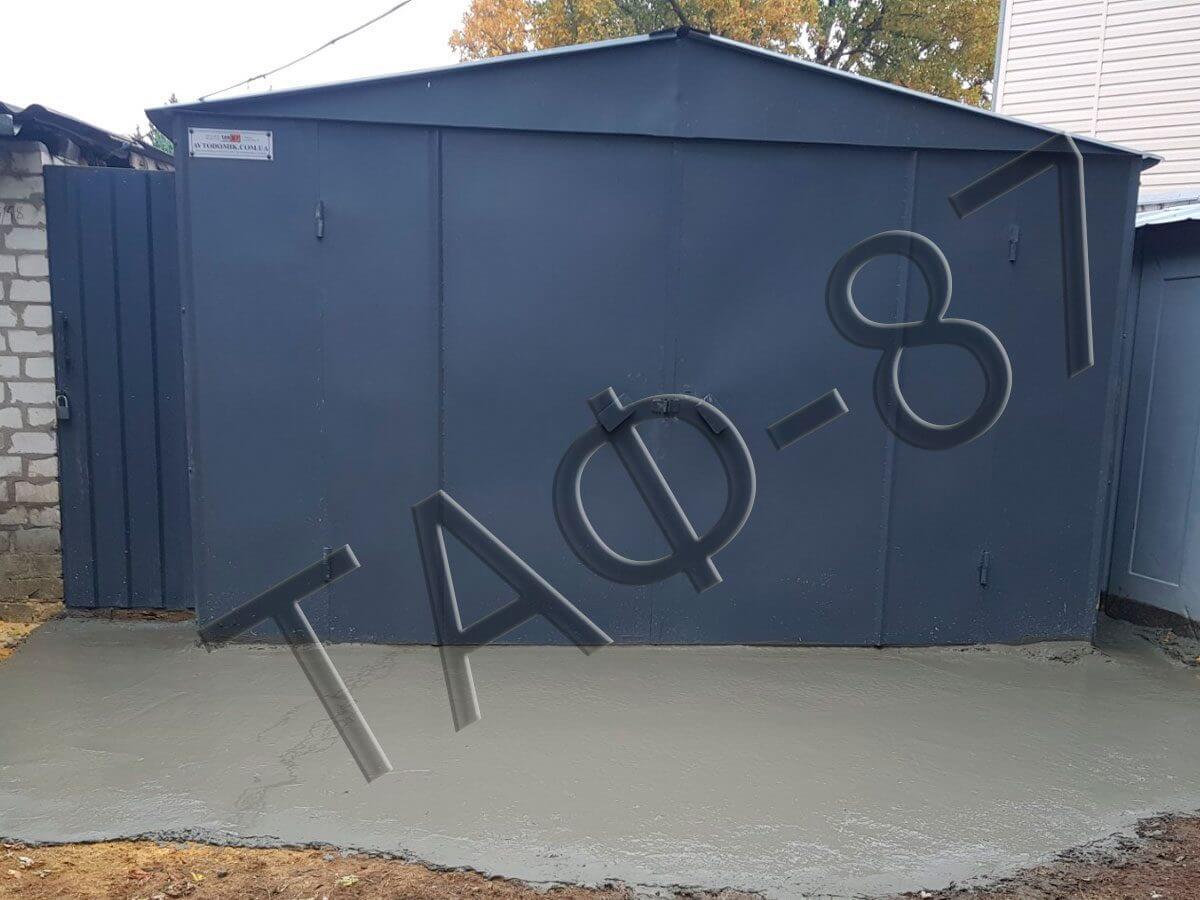

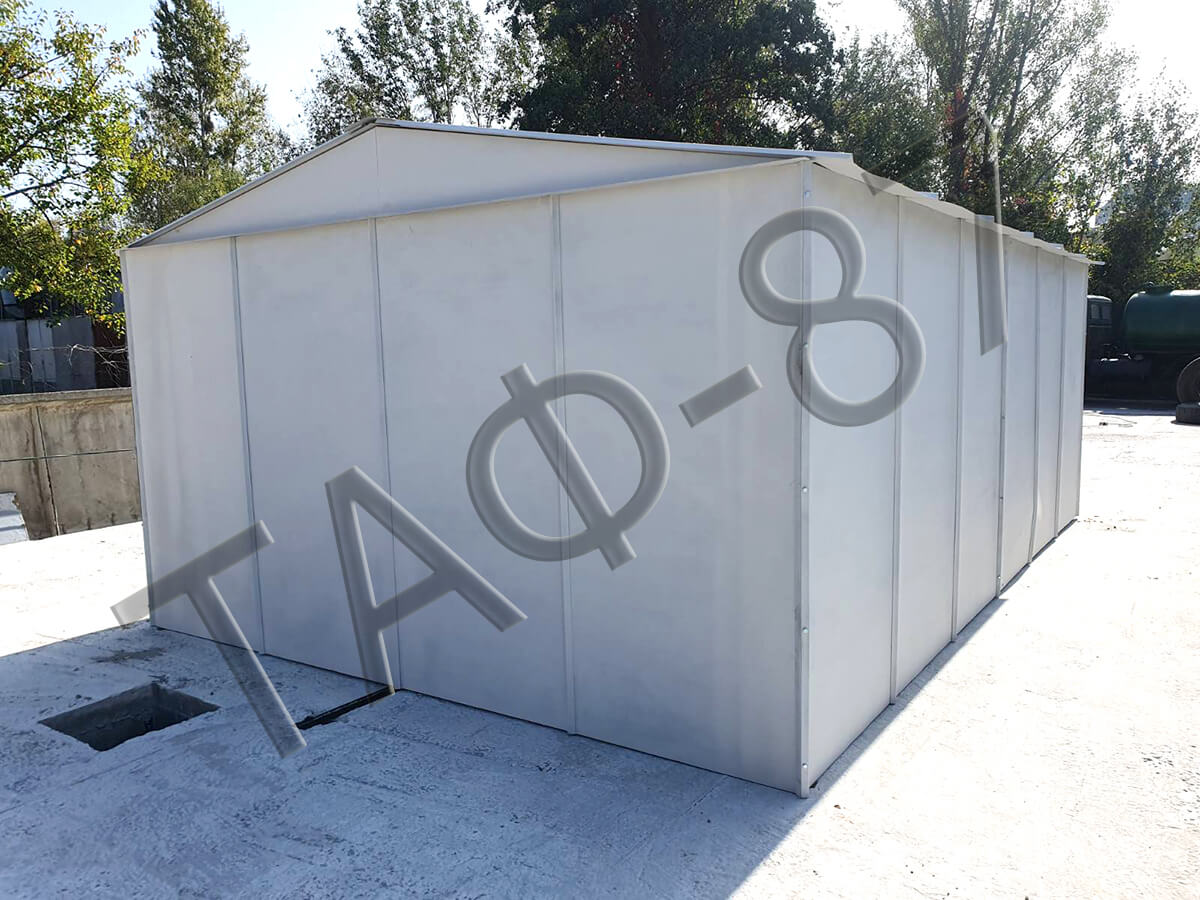

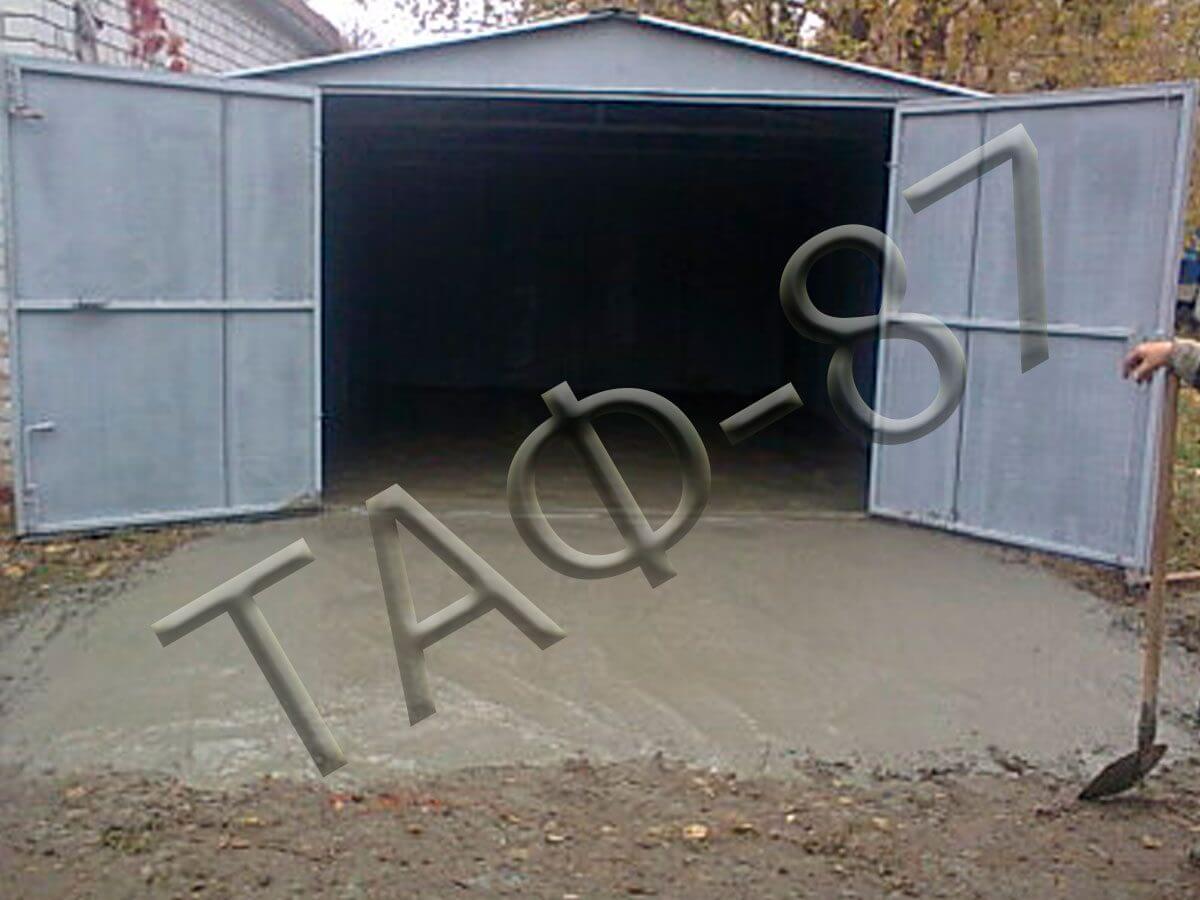

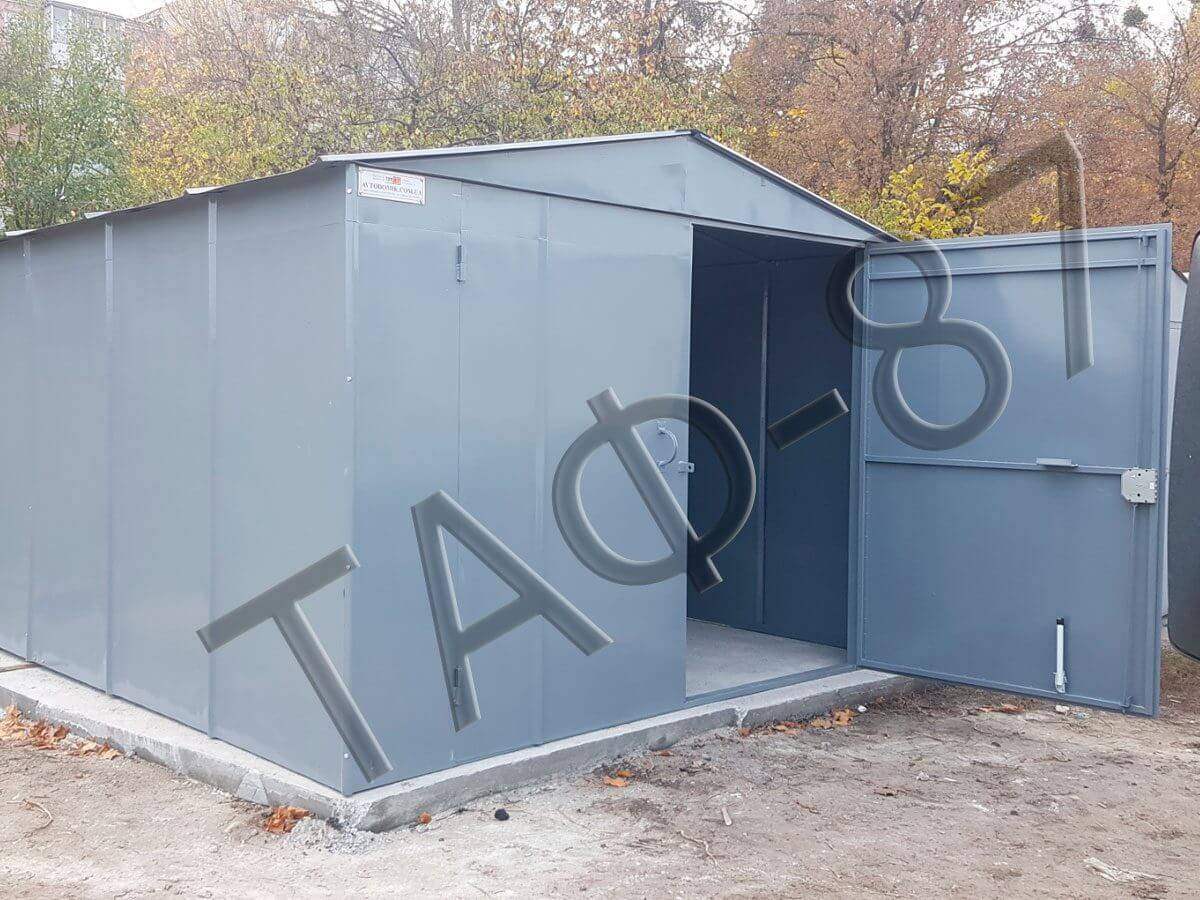

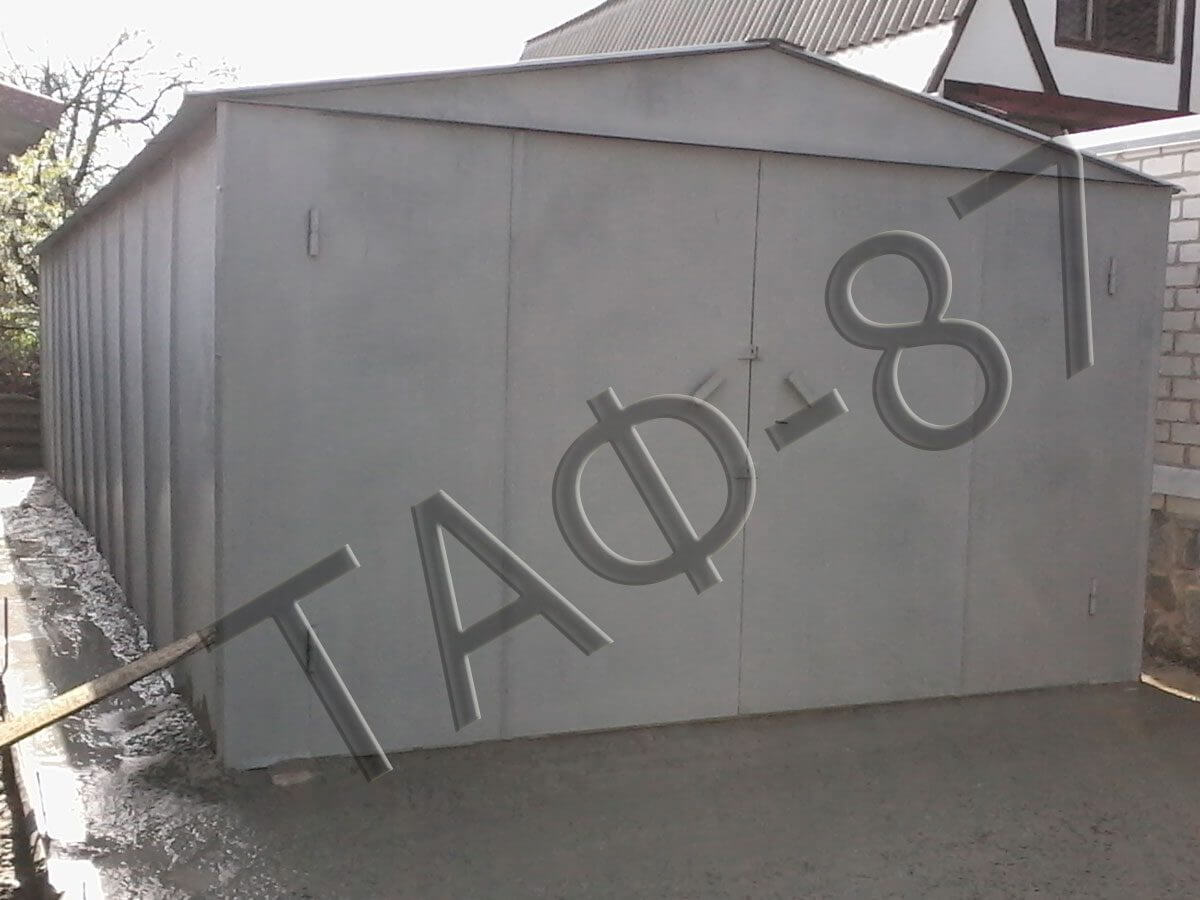

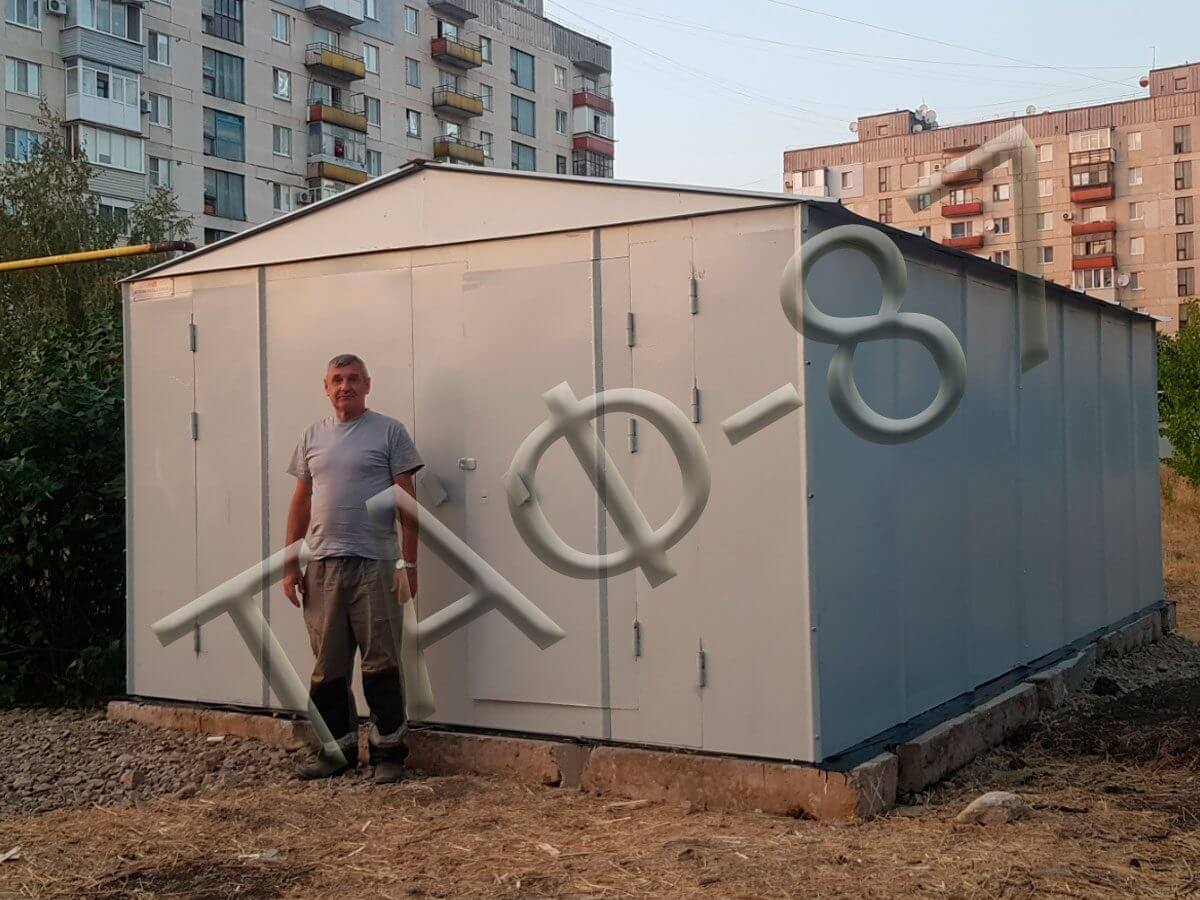

6	Concreting	Concrete M200 = 3.0 cubic meters. with delivery, formwork, waterproofing, mesh 50x50x3.0	20 000 UAH

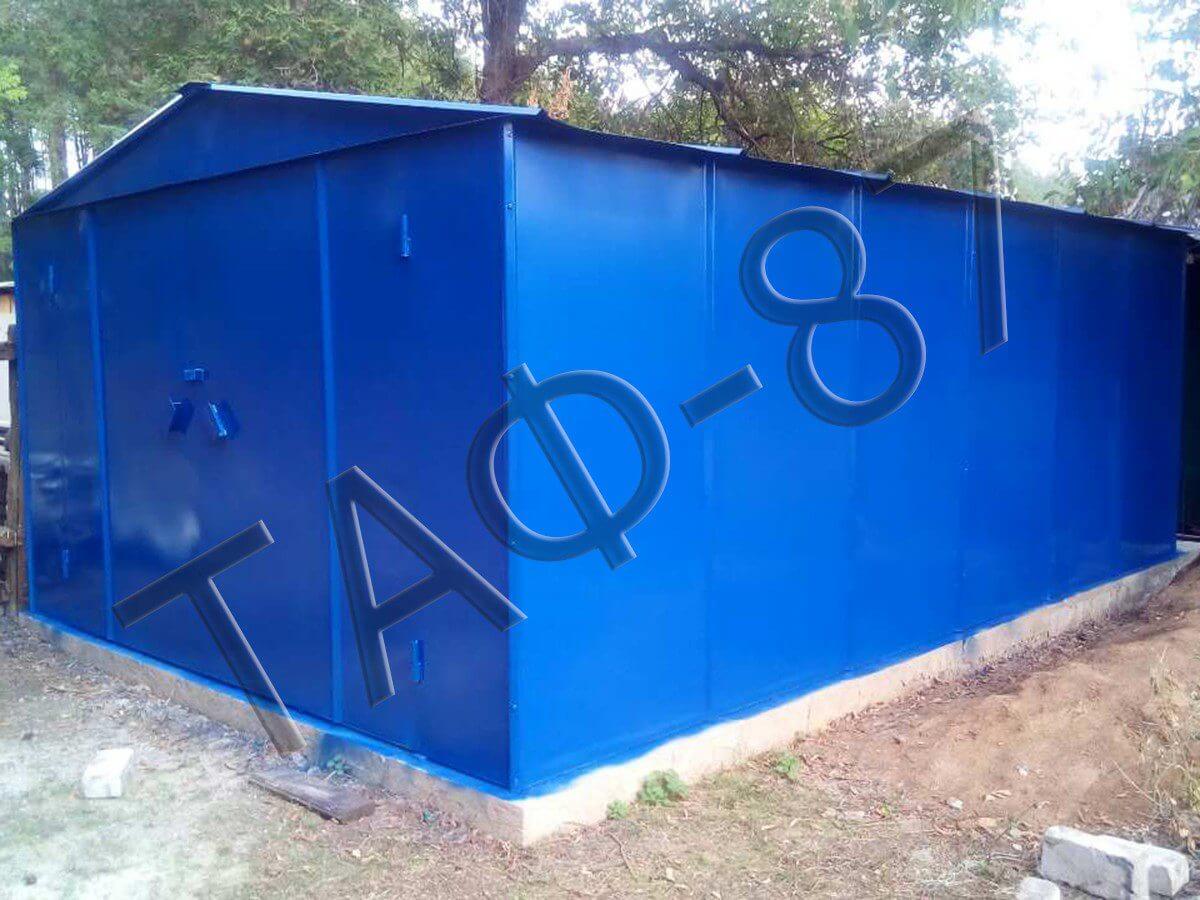

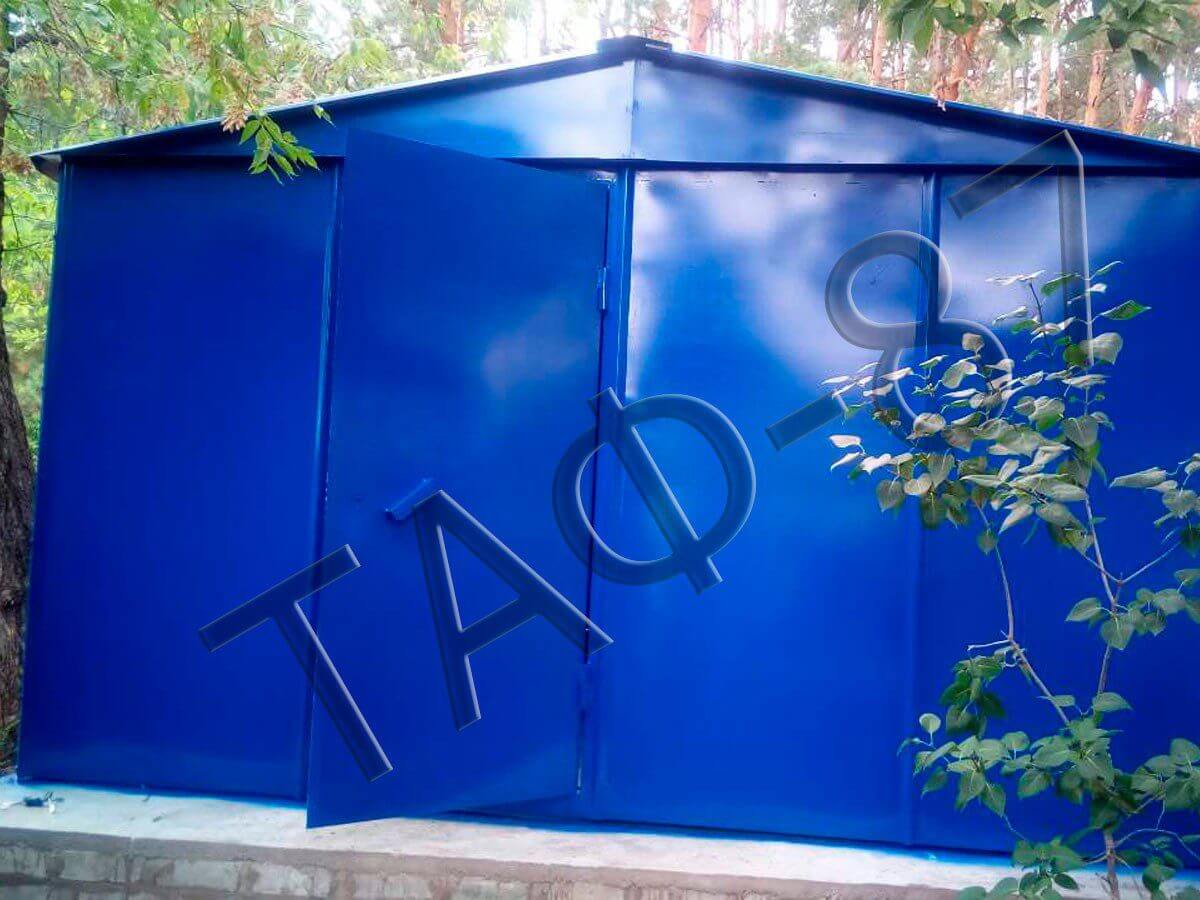

7	Enamel painting	By air using a spray gun, cost of work and material PF-115, color to choose	from 30 UAH/m.sq.

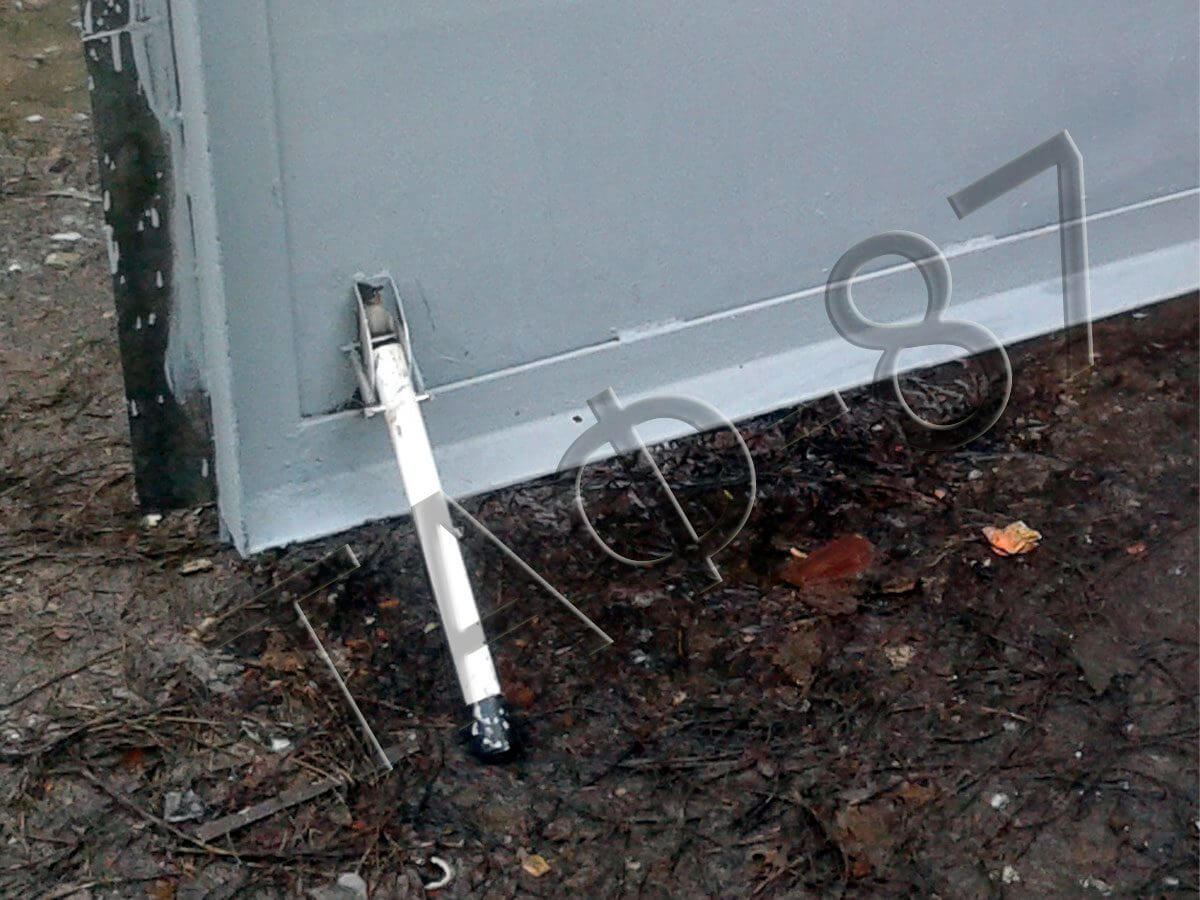

8	Scalding	From the inside for the impossibility of getting in from the outside	from 2 000 UAH
9	0.9 m extension made of 1.2 mm metal	2 sheets of 1.2 mm wall with corners, 2 sheets of 1.2 mm roof, lower and upper ridge, in the ground, without installation	7 200 UAH
10	Metal truss from 3.0 to 3.8 m	Corner 40x40x3, in the ground, without installation	1 800 UAH
11	The gate	Width 0.8 m, height 1.8 m	5 000 UAH
12	Other services	За домовленістBy agreement, more in the “services” section	contractual

HOW NOT TO FALL IN THE TRAP OF DISCONTINUED PERFORMERS (SCAMMERS). See our article at this link.

In the manufacture of the garage, new metal of the 1st grade with the actual declared thickness is used.

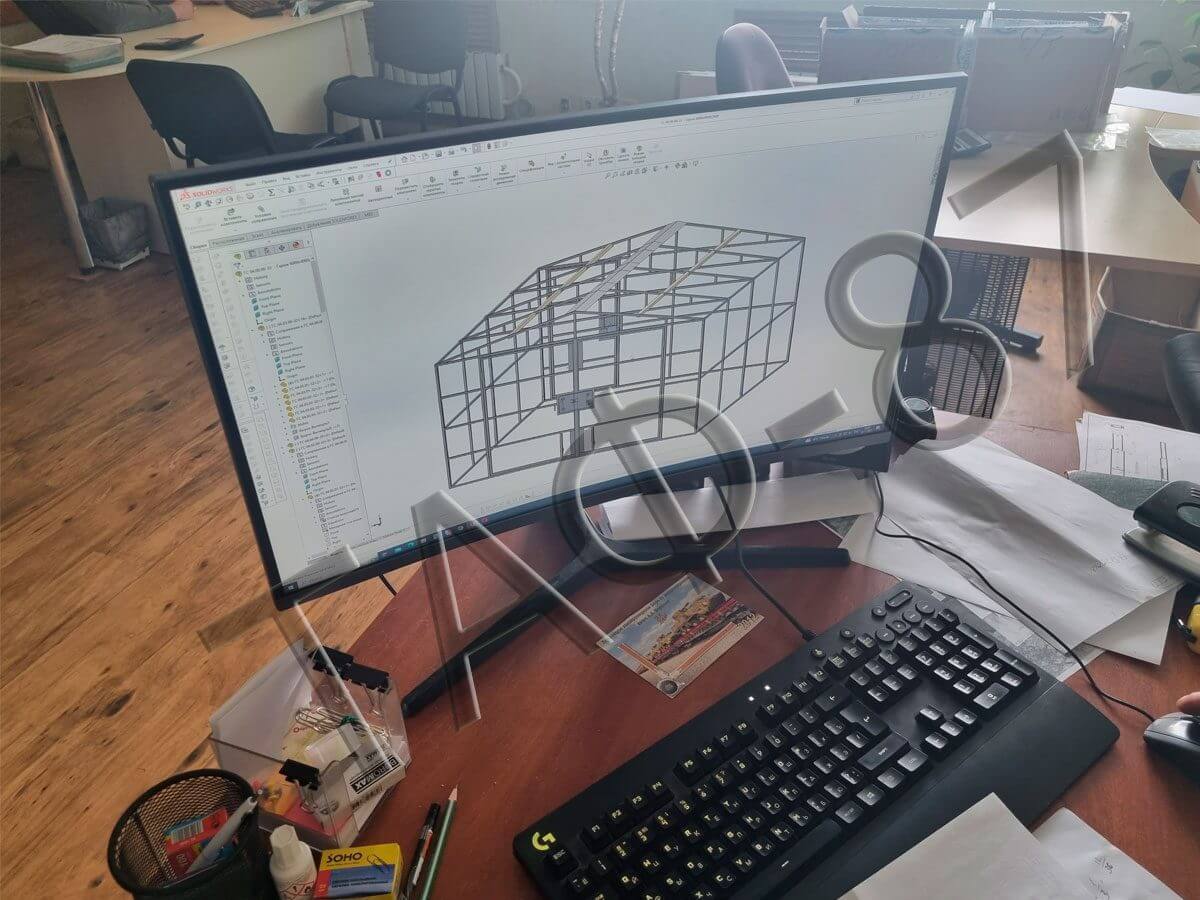

• Production according to drawings

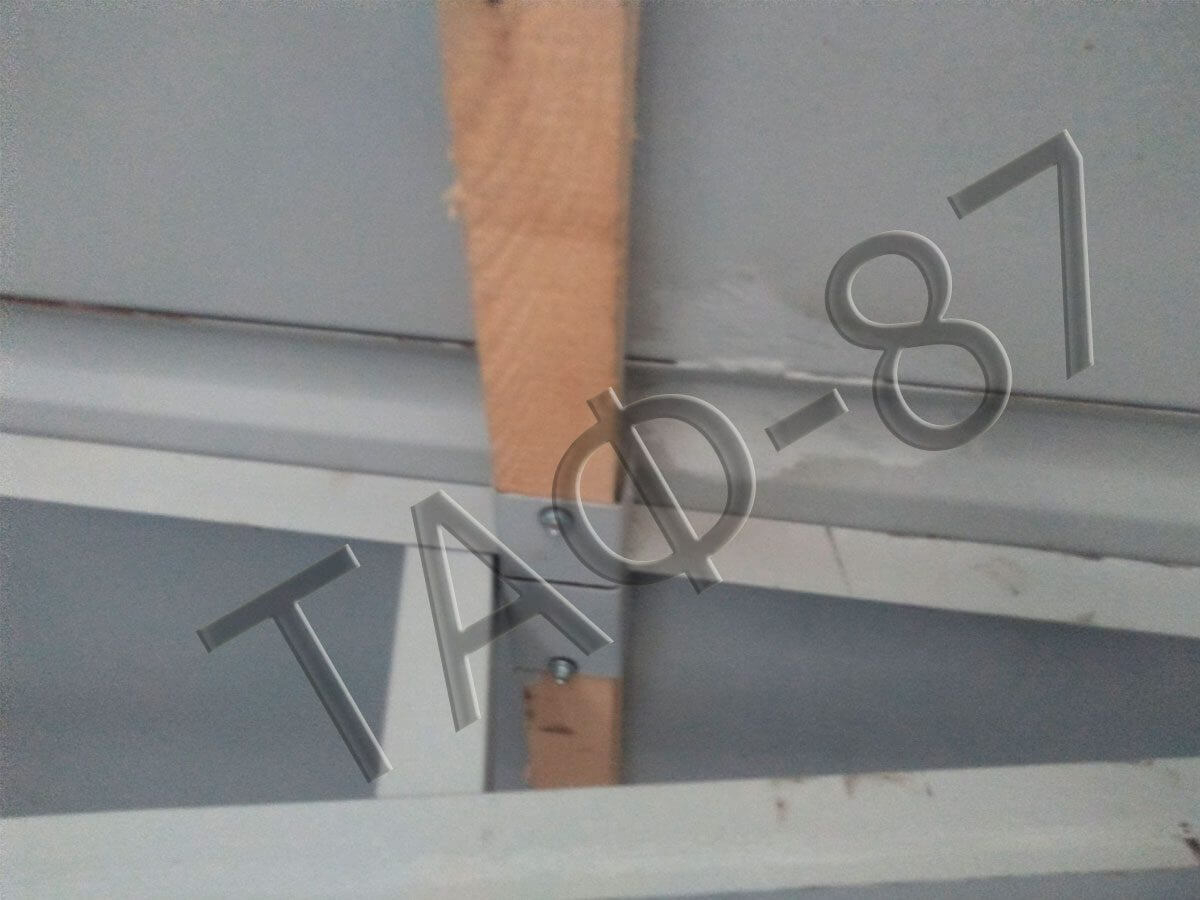

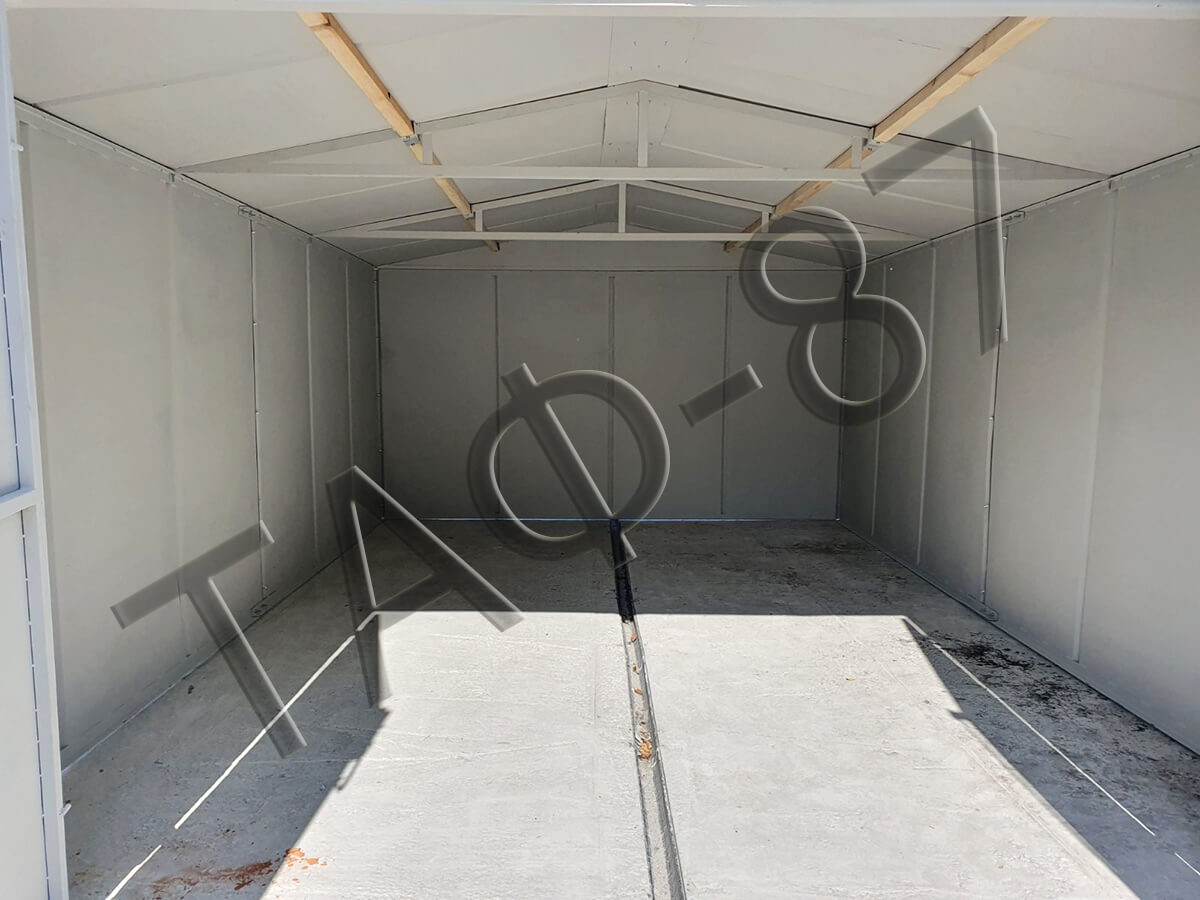

• The frame (walls and roof) is self-supporting thanks to the profiling of the sheet with a thickness of 1.2/2.0 mm. The sheet is profiled and welded from above and below with a 40x40x3 corner.

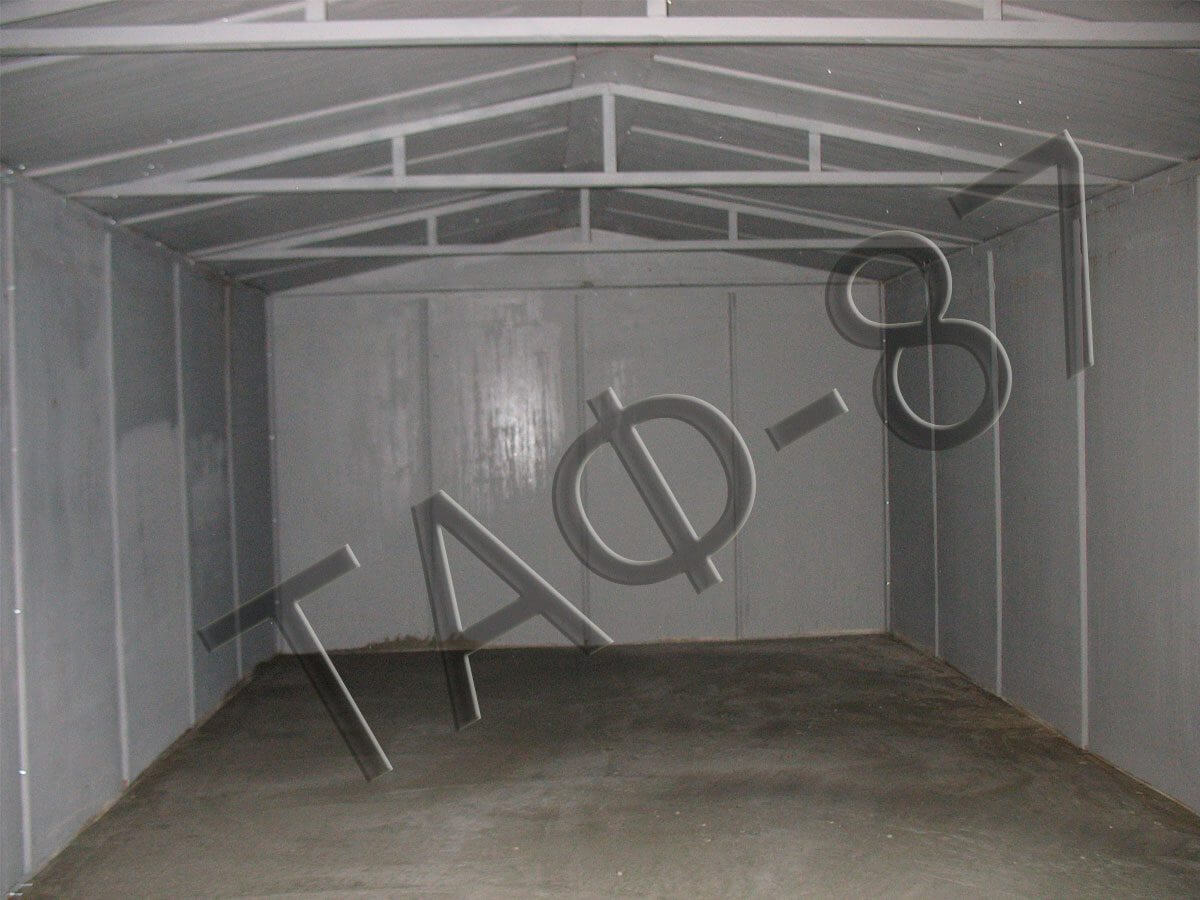

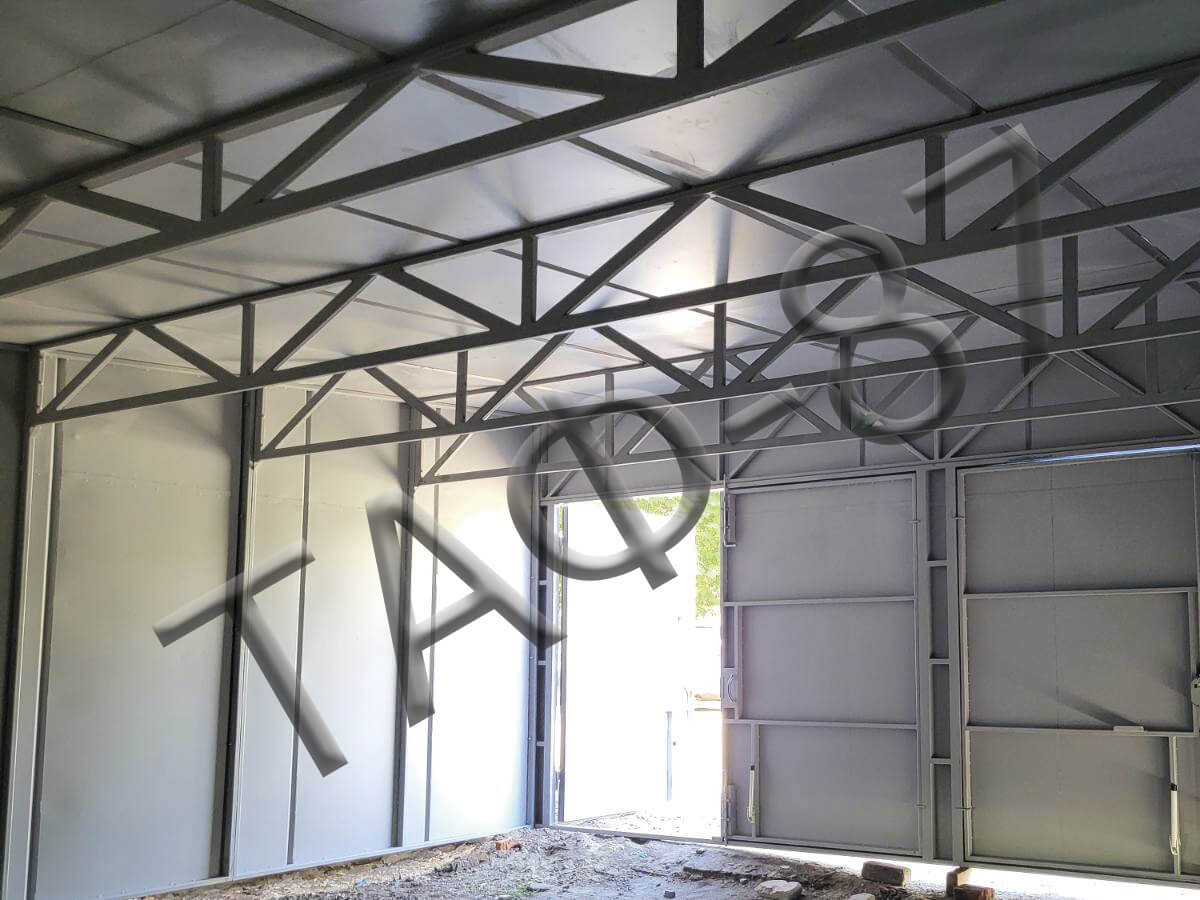

• Farms are made from a corner 40x40x3.

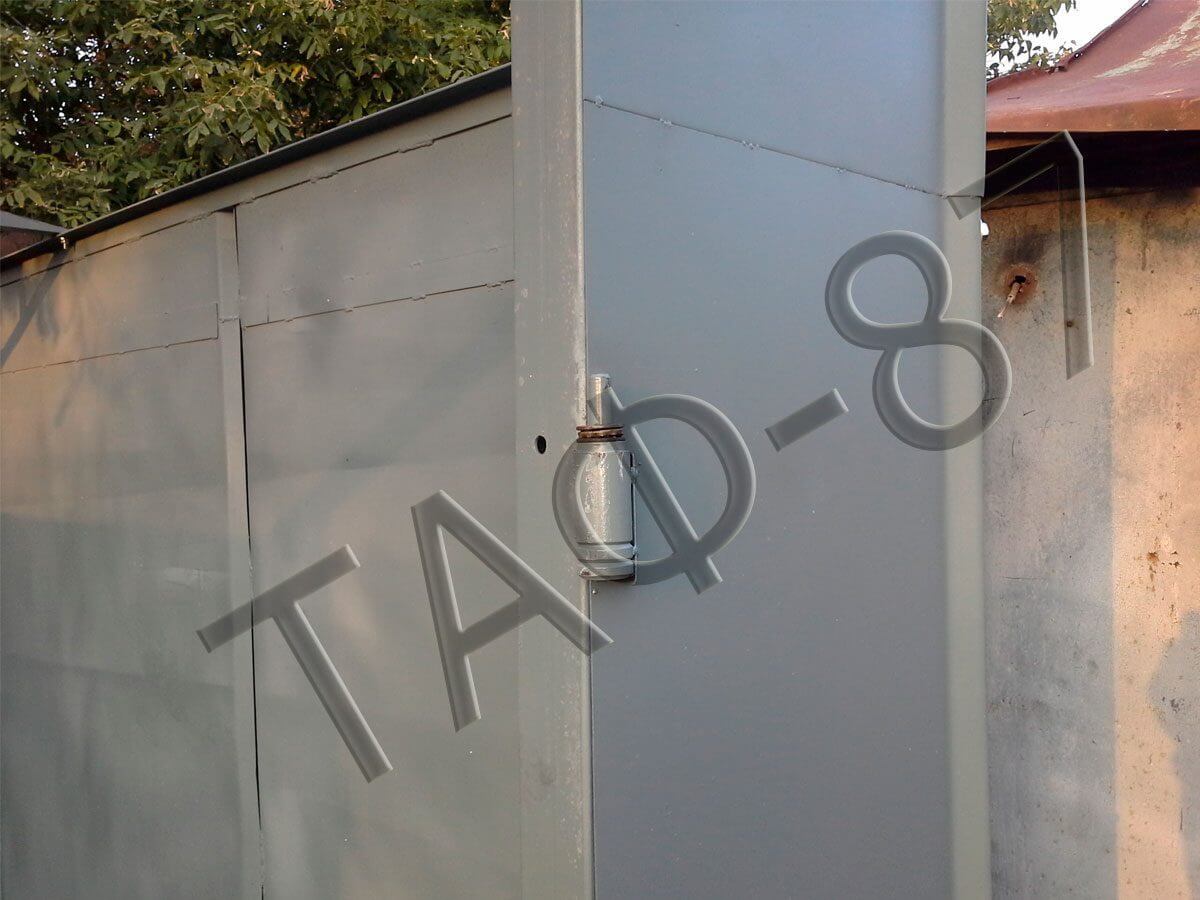

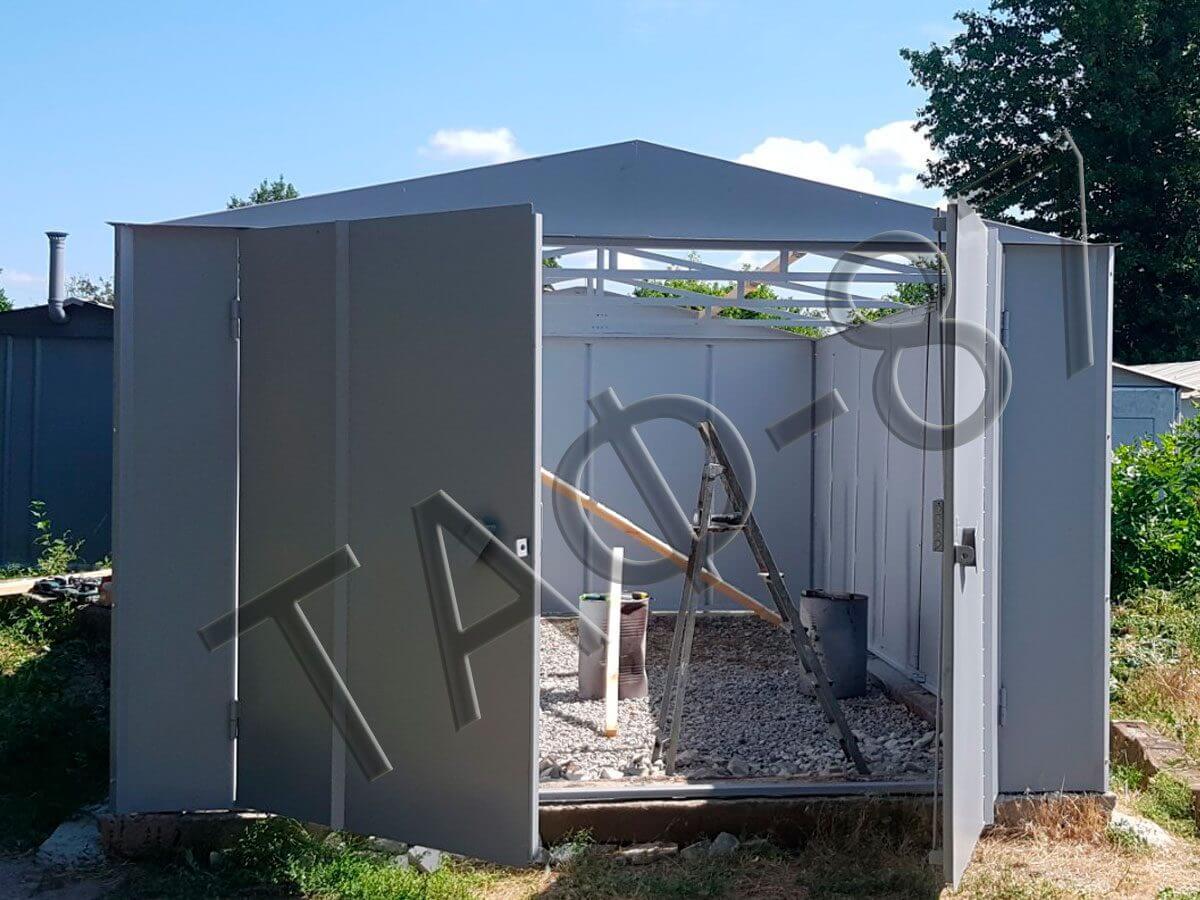

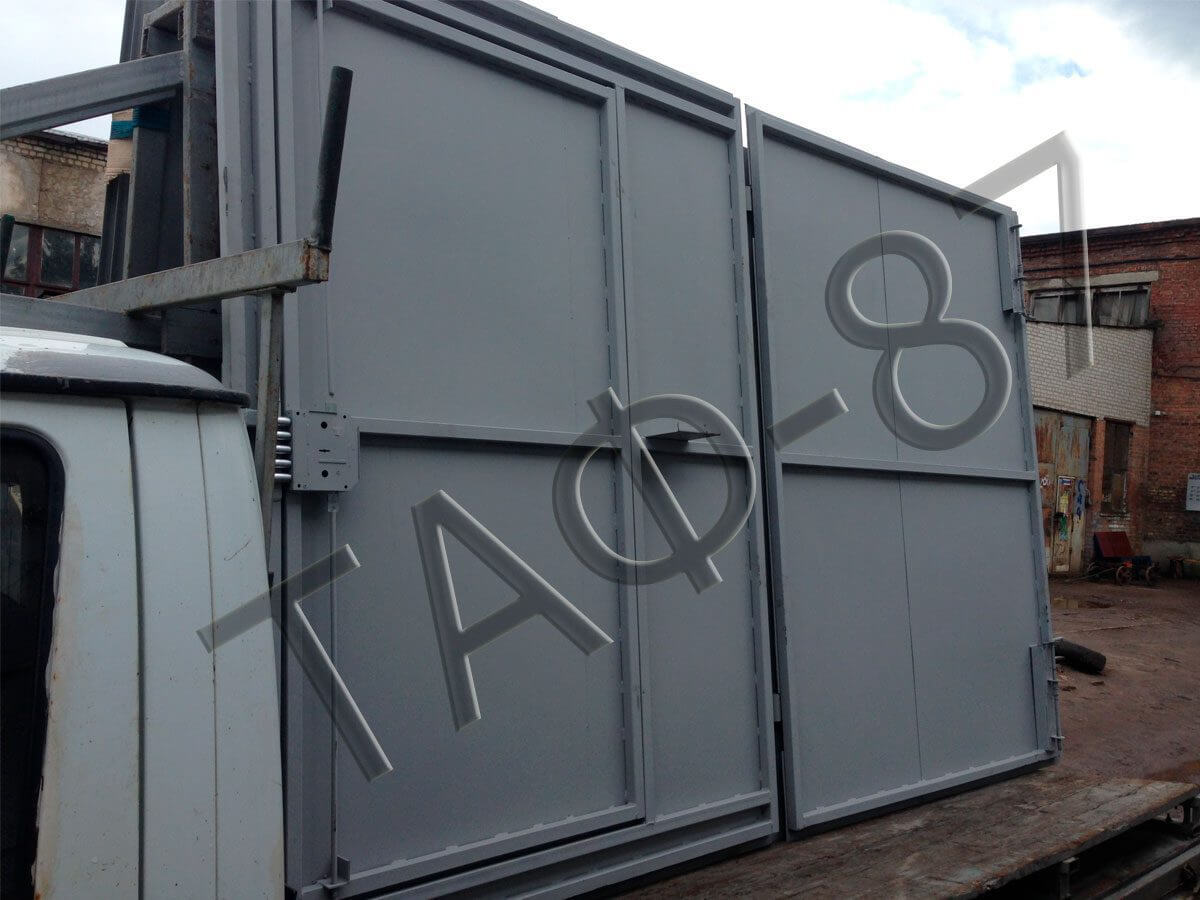

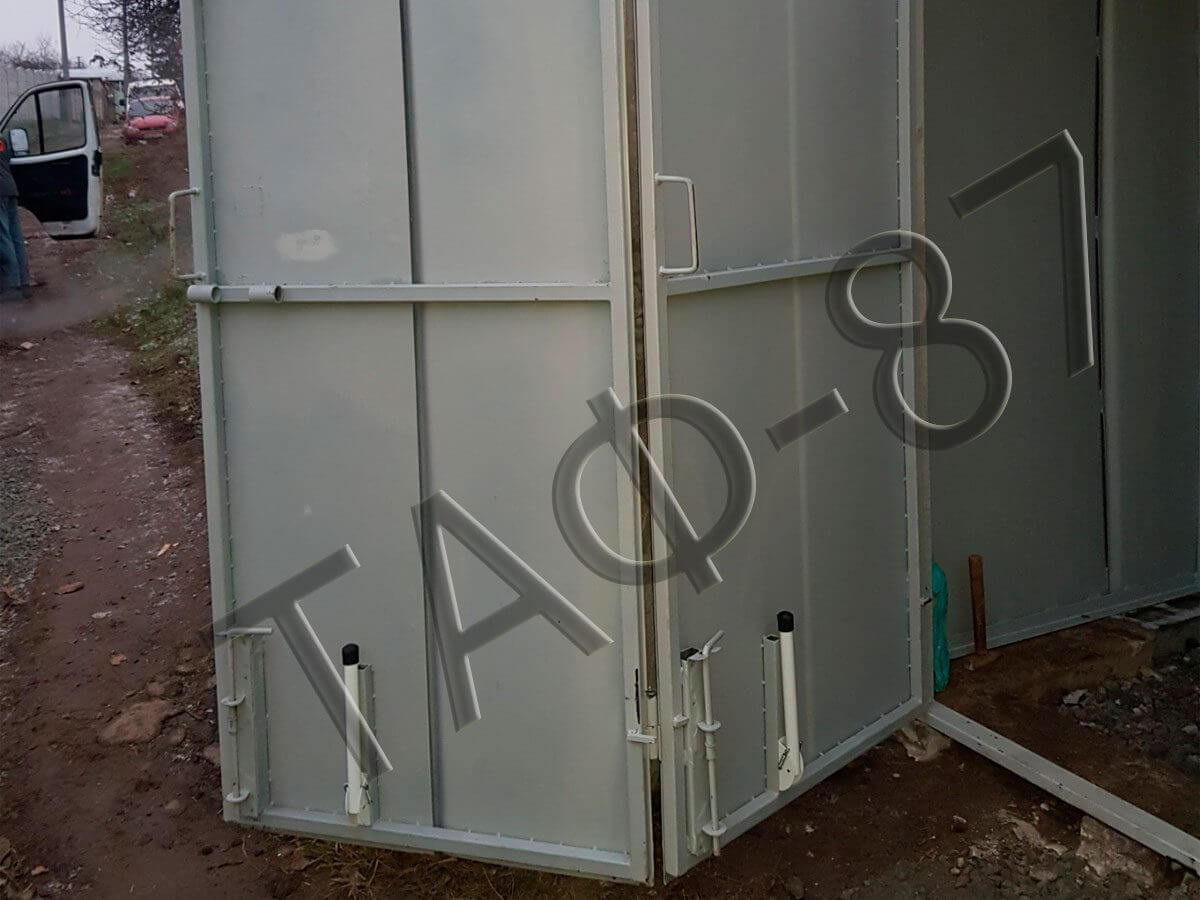

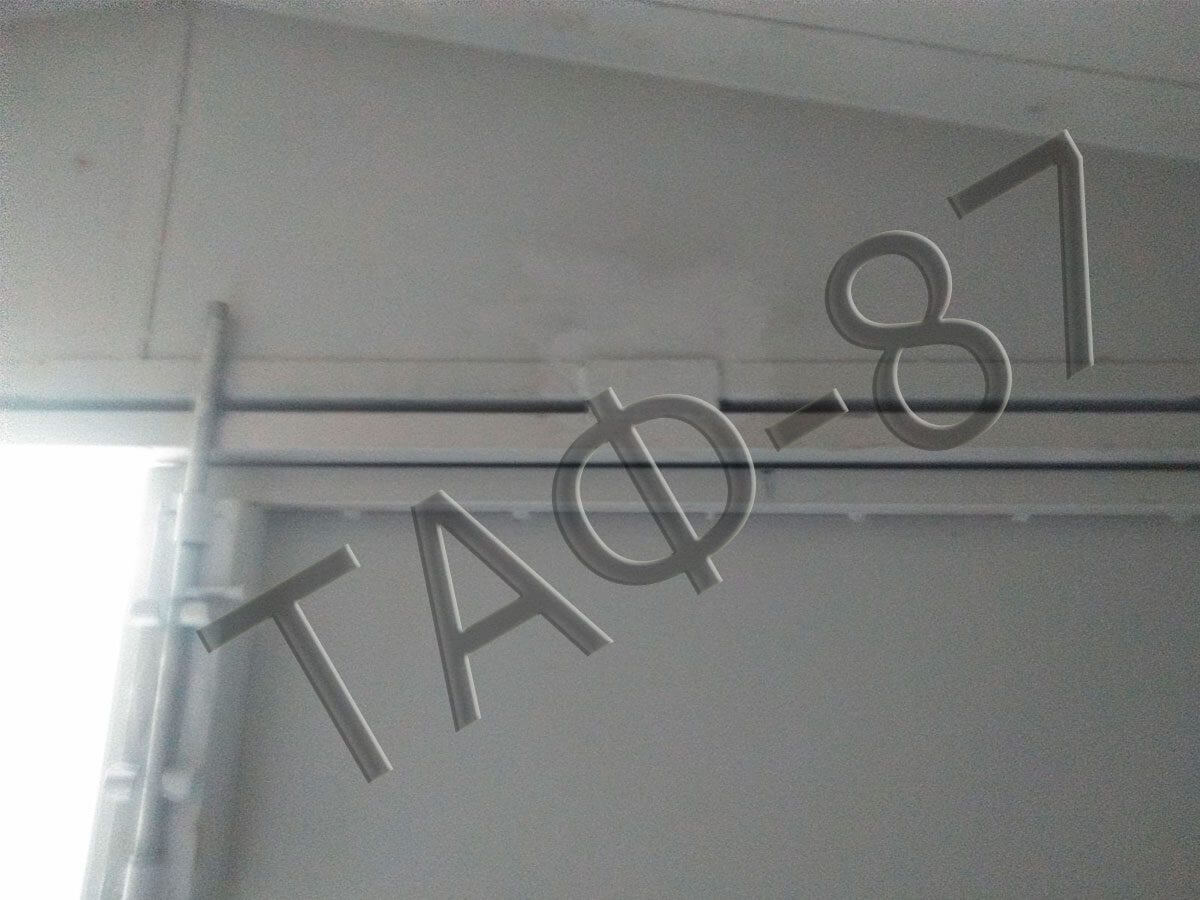

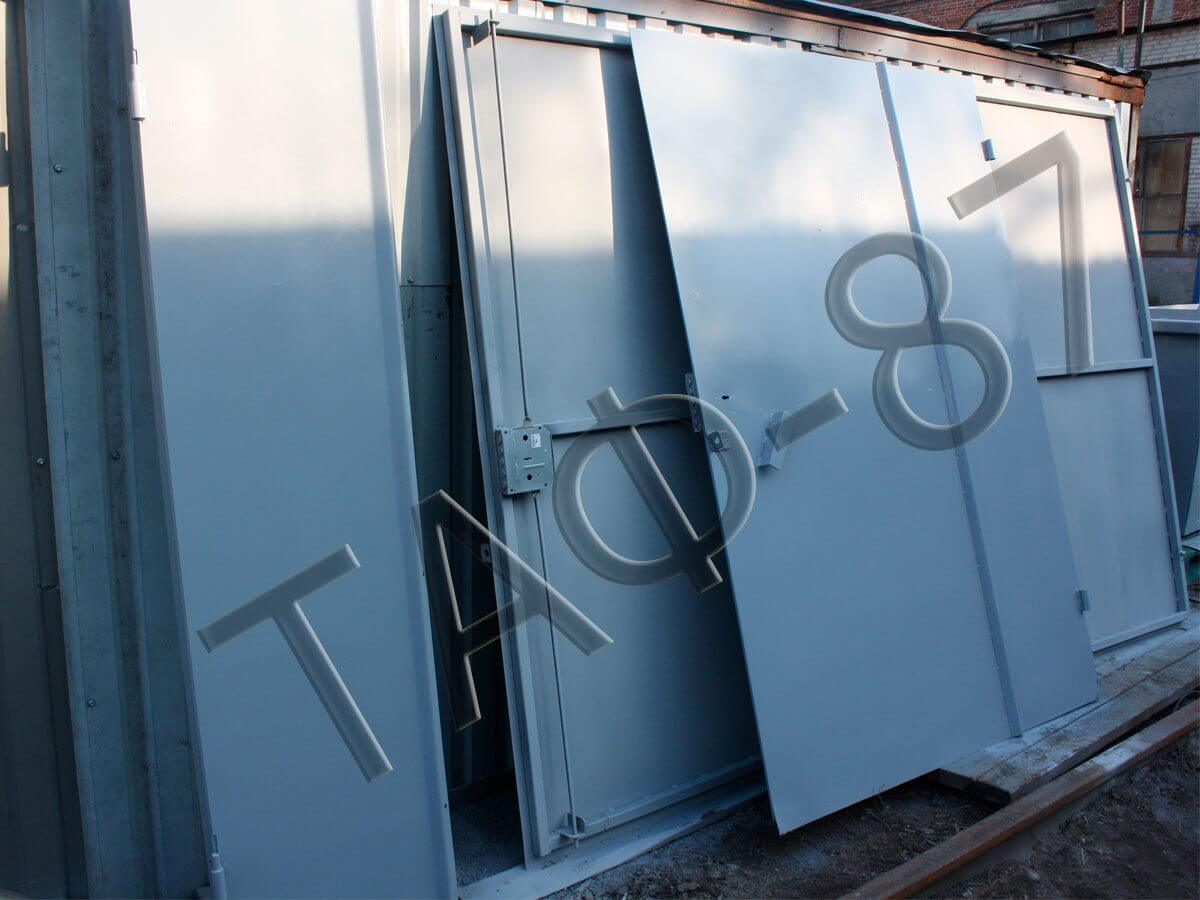

• The door part is made of a profile pipe 60x60x2 (vertical uprights) and 60x30x2 (horizontal elements). The gate frame is made of a 30x30x2 pipe. This design provides the necessary rigidity.
• High-quality coating of structures with soil and enamel in the painting room using professional AirPro equipment and air preparation (dryers)
• Quality control at all stages of production
• Use of hardware group M8 and self-tapping screws
• Extensive experience in the manufacture of garages
• Any form of payment: cash, non-cash, on FOP, without VAT, with VAT.

Non-standard metal garages made of steel can have

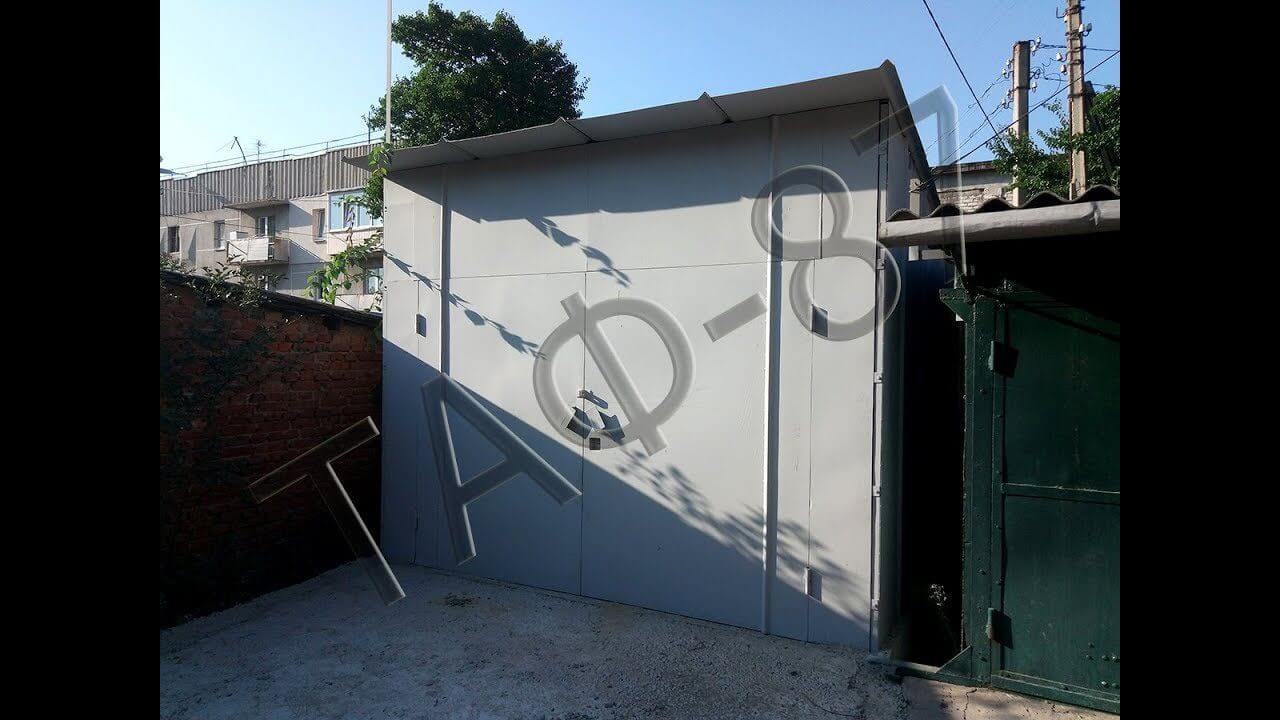

• A single-pitched roof instead of a two-pitched one, or a complex-shaped roof

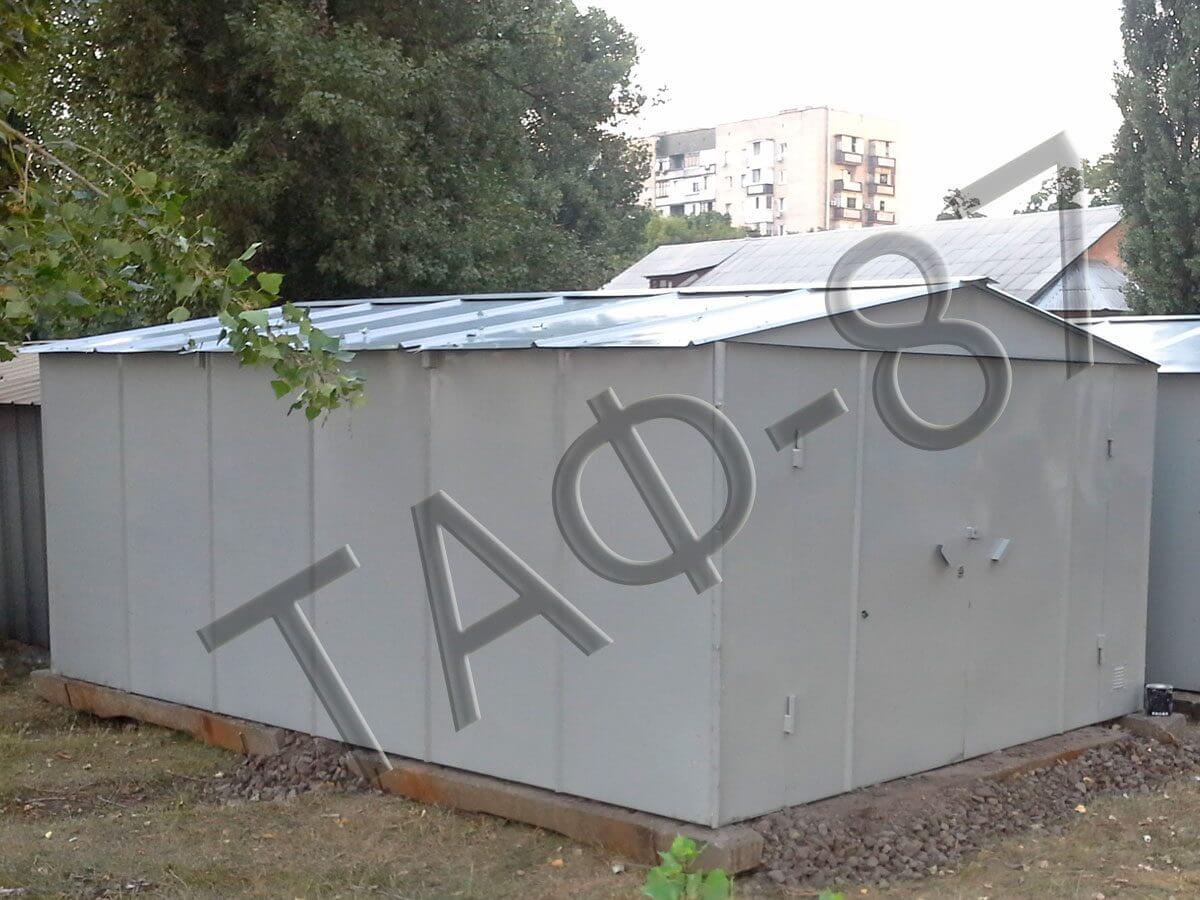

• Combined arrangement (eg 2.0mm steel gate, 1.2mm steel walls, 0.4mm corrugated roof)

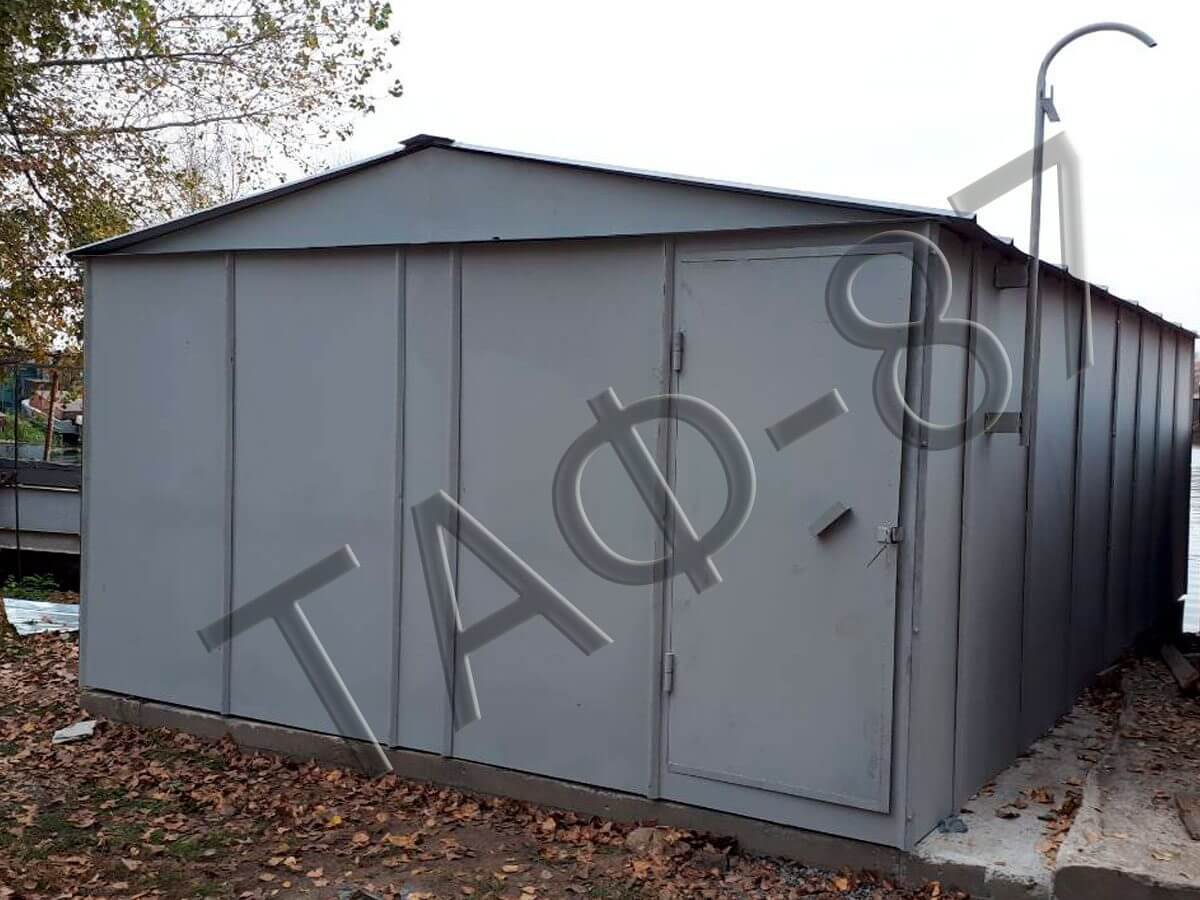

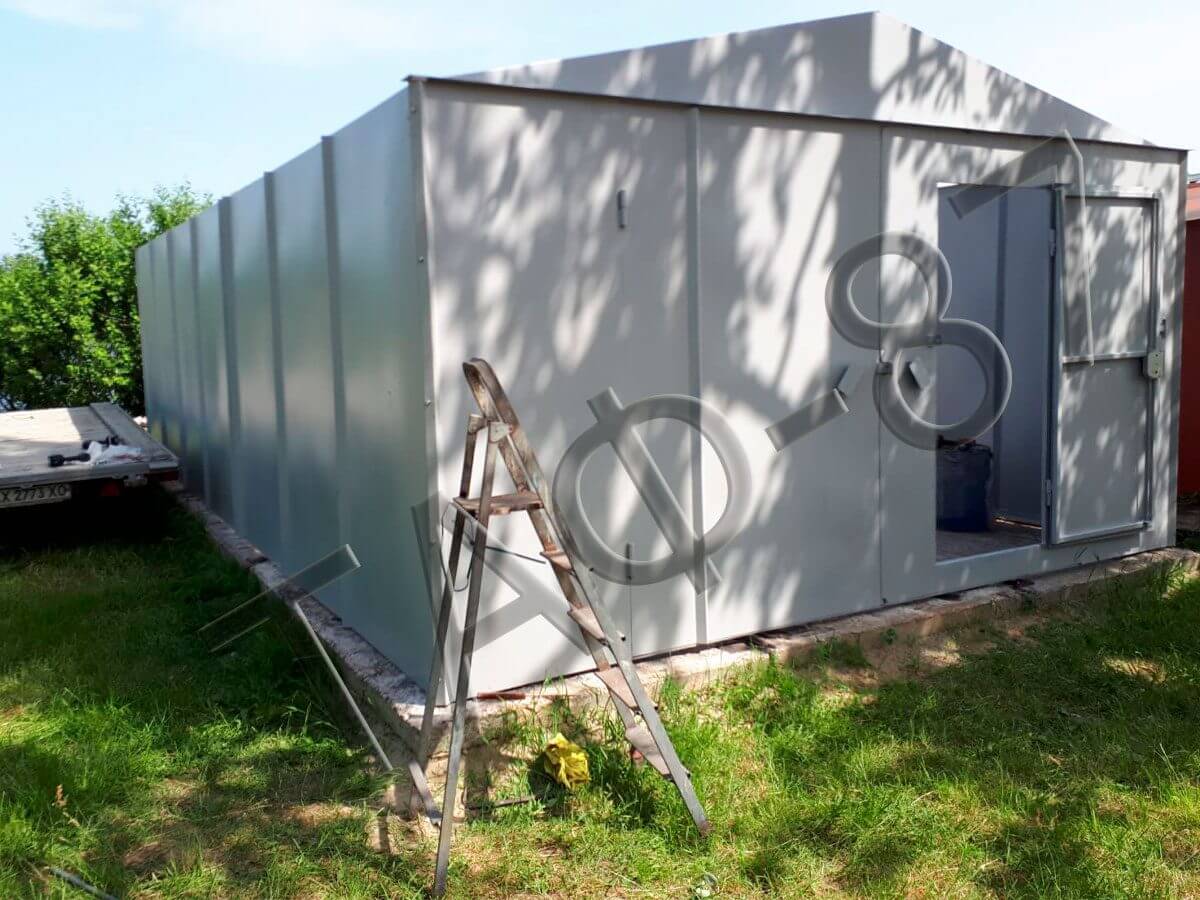

• The presence of a wicket in the gate or in the walls
• Availability of 2 gates
• “Gormoshka” gate
• A complex of anti-vandal measures
• Other parameters

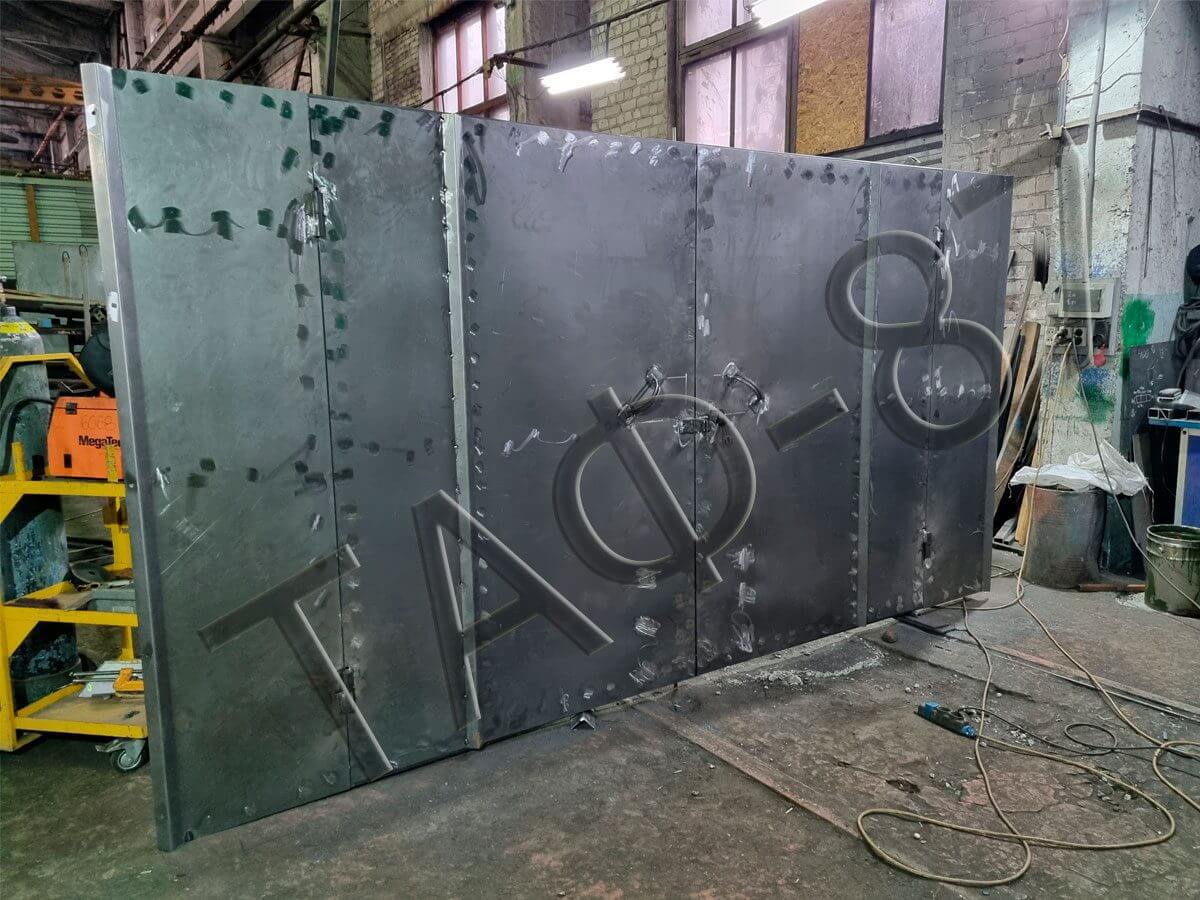

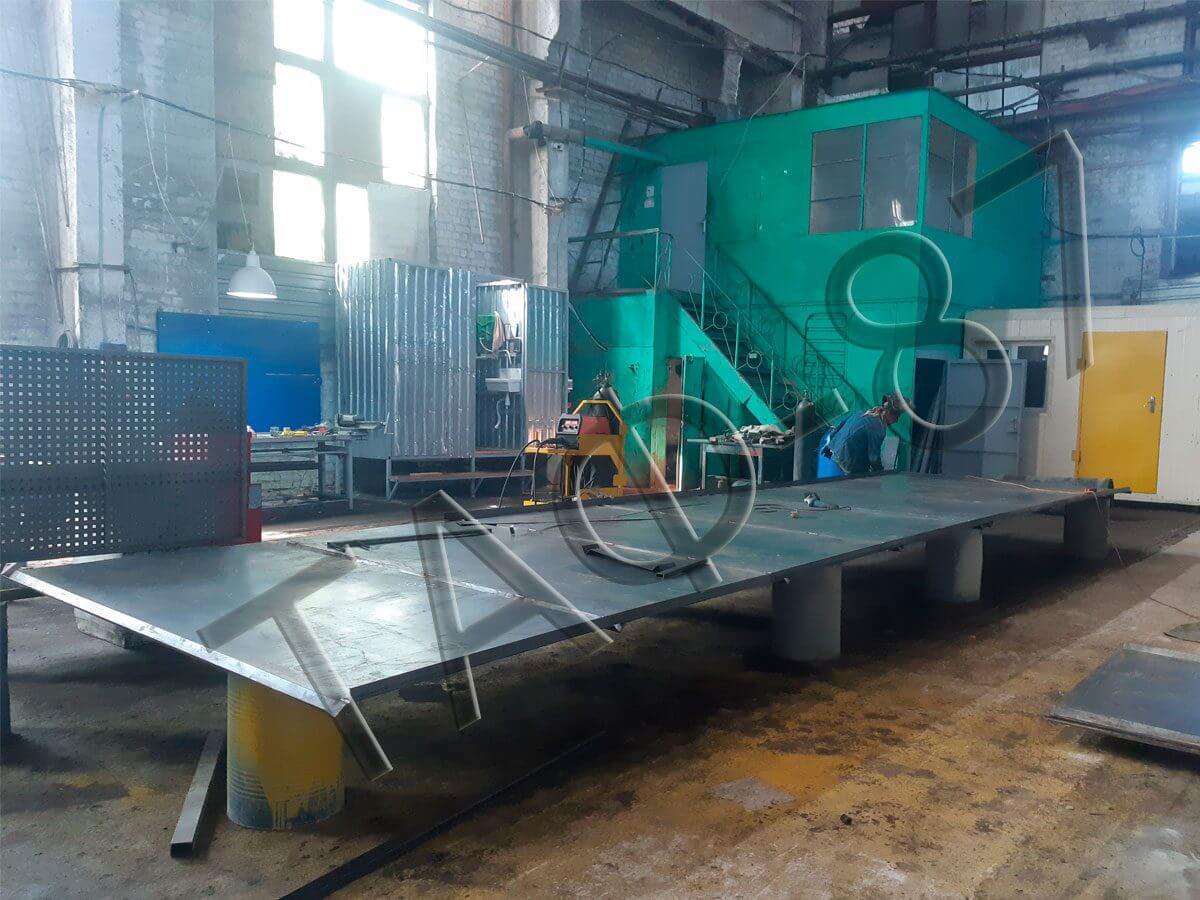

Production of metal garages in accordance with DSTU B V.2.2-22, DSTU B V.2.6-75 and TU U 25.1-40281382-006:2023. The company has quality control. Each garage has a stamp of the employee who made it. The manufacture of garages made of steel is carried out by qualified personnel in a warm, equipped room using a park of machines, the necessary equipment and conductors. Works are performed according to drawings.

The term of manufacturing a garage is from 5 to 7 working days.

The company provides a 12-month warranty.
